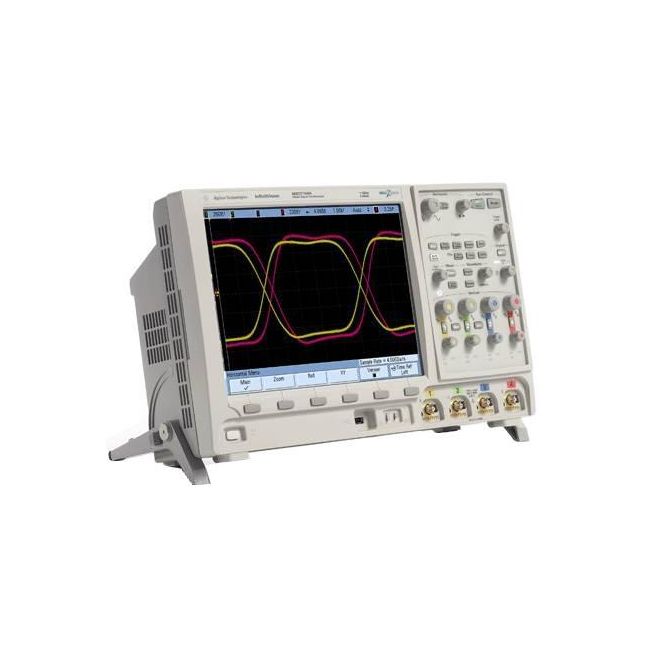

Keysight (Agilent) DSO7054A 4 Ch 500MHz Oscilloscope - Infiniium S Series
4 Ch 500MHz Oscilloscope - Infiniium S Series
500 MHz Bandwidth
4 Number of Channels
4 GSa/s (single-channel), 2 GSa/s (all channels) Sample Rate
Up to 8 Mpts per channel Memory Depth
8-bit (up to 12-bit with averaging) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 4 GSa/s (single-channel), 2 GSa/s (all channels) |
| Memory Depth | Up to 8 Mpts per channel |
| Vertical Resolution | 8-bit (up to 12-bit with averaging) |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Timebase Range | 1 ns/div to 50 s/div |
| Display | 12.1-inch XGA color LCD touchscreen |
| Trigger Types | Edge, Glitch, Pattern, Pulse Width, Runt, Setup & Hold, TV, Violation, and more |
| Input Impedance | 50 Ω or 1 MΩ (with 13 pF capacitance) |
Keysight Technologies DSO7054A 4 Ch 500MHz Oscilloscope - Infiniium S Series Options:
- DSO7054A - SEC - Secure Environment Mode (prevents oscilloscope setup and trace information from being stored in internal memory)
- DSO7054A - A6J - ANSI Z540 Compliant Calibration
- DSO7054A - N2735 - Mixed Signal Oscilloscope (MSO) Upgrade
- DSO7054A - N2736A - Mixed Signal Oscilloscope (MSO) Upgrade
- DSO7054A - N2737A - Mixed Signal Oscilloscope (MSO) Upgrade
- DSO7054A - N5423A - I2C/SPI Serial Decode Option (Option LSS)
- DSO7054A - N5424A - CAN/LIN Automotive Triggering and Decode (Option AMS)
- DSO7054A - N5432A - FlexRay Triggering and Decode Option (Option FRS)
- DSO7054A - N5406A - FPGA Dynamic Probe for Xilinx (Option 001 Oscilloscope-locked or Option 002 PC-locked license)
- DSO7054A - N5434A - FPGA Dynamic Probe for Altera (Option 001 Oscilloscope-locked or Option 002 PC-locked license)
- DSO7054A - N5457A - UART/RS232 Trigger and Decode Option (Option 232)
| Model | DSO7054A |
|---|
The Keysight (Agilent) DSO7054A offers 500 MHz bandwidth, 4 analog channels, and a 4 GSa/s sample rate, built into a compact 6.5-inch-deep design with an XGA display.
Equipped with 8 Mpts memory, serial decode support, segmented memory, and advanced power and signal analysis tools.
Testwall can supply the used Keysight (Agilent) DSO7054A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO7054A.
