Keysight (Agilent)

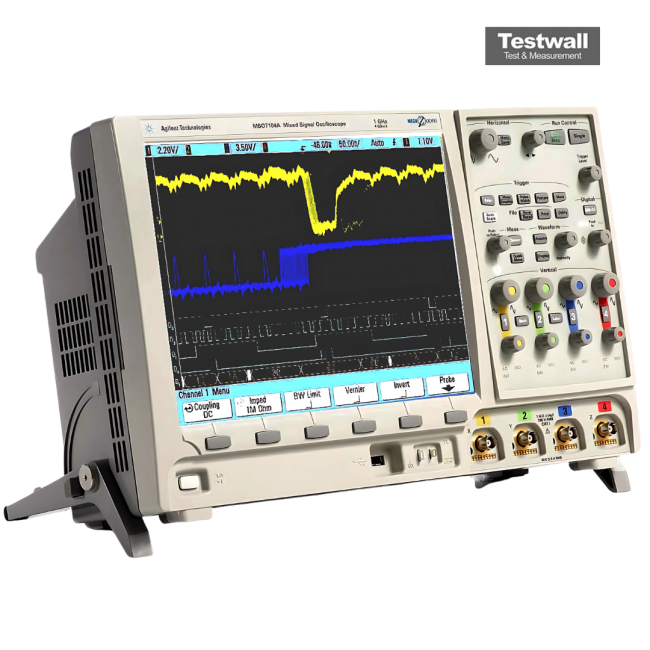

Keysight (Agilent) DSO7104A 4 Ch 1 GHz Digital Storage Oscilloscope
4 Ch 1 GHz Digital Storage Oscilloscope
1 GHz Bandwidth
4 Number of Channels
4 GSa/s Sample Rate
8 Mpts standard (up to 16 Mpts with option) Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 |
| Sample Rate | 4 GSa/s |
| Memory Depth | 8 Mpts standard (up to 16 Mpts with option) |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity Range | 1 mV/div to 5 V/div |
| Timebase Range | 1 ns/div to 50 s/div |
| Display | 12.1-inch XGA color display |
| Trigger Types | Edge, Glitch, Pattern, CAN, LIN, I2C, SPI, USB, and more |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 3 pF |
Keysight Technologies DSO7104A 4 Ch 1 GHz Digital Storage Oscilloscope Options:
- DSO7104A - SEC - Secure Environment Mode (prevents oscilloscope setup and trace information from being stored in internal memory)
- DSO7104A - A6J - ANSI Z540 Compliant Calibration
| Model | DSO7104A |
|---|
The Keysight (Agilent) DSO7104A provides 1 GHz bandwidth, 4 GSa/s sampling rate, and 8 Mpts memory, with a 12.1” XGA display for detailed signal visibility.
Includes serial decode, segmented memory, and PC-based offline analysis, suitable for advanced debug tasks.
Testwall can supply the used Keysight (Agilent) DSO7104A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO7104A.
