Keysight (Agilent)
Keysight (Agilent) DSOX-3104A
4 Channel 1GHz 5GS/s Digital Oscilloscope
1 GHz Bandwidth
4 Analog Channels Number of Channels
4 GSa/s Sample Rate
4 Mpts (standard), up to 4 Mpts per channel Memory Depth
8.5-inch WVGA (800 x 480) color display Display
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts (standard), up to 4 Mpts per channel |
| Display | 8.5-inch WVGA (800 x 480) color display |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
| Timebase Range | 2 ns/div to 50 s/div |
| Trigger Types | Edge, Pulse Width, Pattern, OR, Rise/Fall Time, Runt, Setup & Hold, Video, USB, I2C, SPI, UART/RS232, CAN, LIN |
| Connectivity & Interfaces | USB Host, USB Device, LAN (LXI Core 2011), GPIB (optional) |
Keysight (Agilent) DSOX-3104A 4 Channel 1GHz 5GS/s Digital Oscilloscope Options:
- DSOX-3104A - DSOX3ADVMATH - Advanced Math Measurement Application
- DSOX-3104A - DSOX3AERO - A/D Serial Triggering And Analysis (Mil-Std 1553/Arinc 429)
- DSOX-3104A - DSOX3AUDIO - Audio Serial Triggering And Analysis (I S)
- DSOX-3104A - DSOX3AUTO - Automotive Serial Triggering And Analysis (Can, Lin)
- DSOX-3104A - DSOX3COMP - Computer Serial Triggering And Analysis (Rs232/422/485/Uart)
- DSOX-3104A - DSOX3EMBD - Embedded Serial Triggering And Analysis (I C, Spi)
- DSOX-3104A - DSOX3FLEX - Flexray Triggering And Analysis
- DSOX-3104A - DSOX3MASK - Mask Limit Testing Application
- DSOX-3104A - DSOX3MEMUP - 4Mpts Memory Upgrade
- DSOX-3104A - DSOX3MSO - Mso Upgrades (100-500 MHZ Models)
- DSOX-3104A - DSOX3PWR - Power Measurements
- DSOX-3104A - DSOX3SGM - Segmented Memory Acquisition
- DSOX-3104A - DSOX3VID - Video Triggering And Analysis Application
- DSOX-3104A - DSOX3WAVEGEN - Wavegen Built-In Function And Arbitrary Waveform Generator
- DSOX-3104A - DSOXDVM - Integrated Digital Voltmeter
- DSOX-3104A - DSOXEDK - Educators Training Kit
- DSOX-3104A - DSOXGPIB - Gpib Connection Module
- DSOX-3104A - DSOXLAN - Lan/Vga Module
- DSOX-3104A - MSOX3000-001 - Wavegen 20 MHZ Function/Arbitrary Waveform Generator
- DSOX-3104A - MSOX3000-040 - 4Mpts Memory Upgrade
- DSOX-3104A - MSOX3000-232 - Computer Serial Triggering And Analysis (Rs232/Uart)
- DSOX-3104A - MSOX3000-805 - Lan/Vga Module
- DSOX-3104A - MSOX3000-806 - Gpib Module
- DSOX-3104A - MSOX3000-AER - A/D Serial Triggering And Analysis (Mil-Std 1553/Arinc 429)
- DSOX-3104A - MSOX3000-AMS - Automotive Serial Triggering And Analysis (Can, Lin)
- DSOX-3104A - MSOX3000-DVM - Integrated Digital Voltmeter
- DSOX-3104A - MSOX3000-EDK - Educators Training Kit
- DSOX-3104A - MSOX3000-FLX - Flexray Triggering And Analysis
- DSOX-3104A - MSOX3000-LMT - Limit Mask Testing
- DSOX-3104A - MSOX3000-LSS - Embedded Serial Triggering And Analysis (I C, Spi)
- DSOX-3104A - MSOX3000-MAT - Advanced Math Measurement Application
- DSOX-3104A - MSOX3000-PWR - Power Analysis Application
- DSOX-3104A - MSOX3000-SGM - Segmented Memory Application
- DSOX-3104A - MSOX3000-SND - Audio Serial Triggering And Analysis (I S)
- DSOX-3104A - MSOX3000-VID - Video Triggering And Analysis
| Model | DSOX-3104A |
|---|

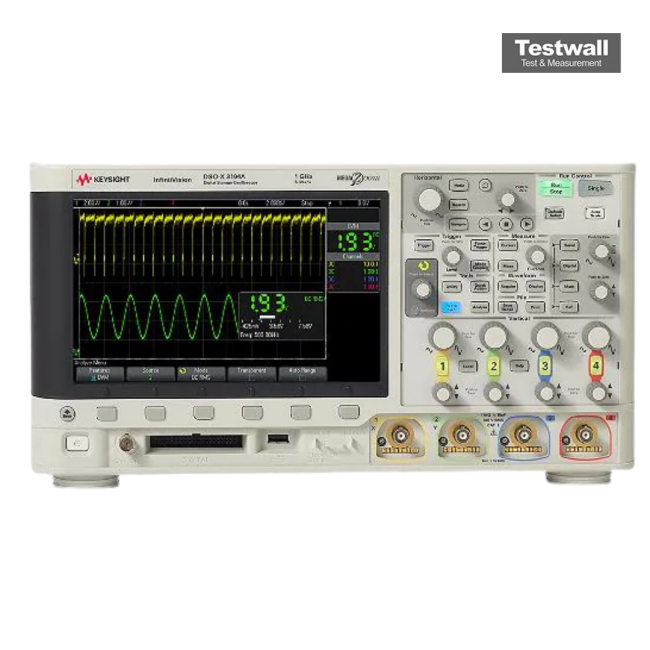

The Keysight (Agilent) DSOX-3104A is a 4-channel 1GHz digital oscilloscope with 5GS/s sampling rate, featuring an 8.5-inch WVGA display and MegaZoom IV ASIC technology for deep memory and ultra-fast waveform update rates.
It combines oscilloscope, logic analyzer, function generator, and protocol analyzer in one unit with automatic deep memory adjustment for optimal performance.
Testwall can supply the used Keysight (Agilent) DSOX-3104A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX-3104A.
