Keysight (Agilent)

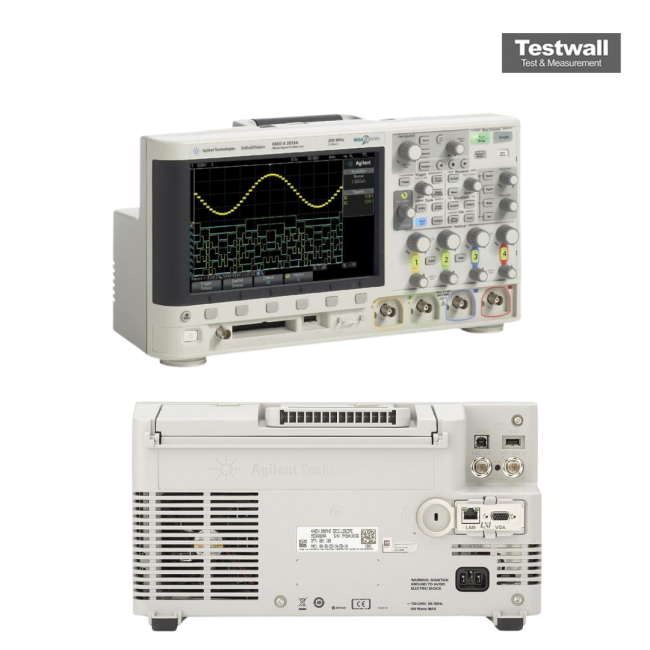

Keysight (Agilent) DSOX2014A
100MHz 4 Channel 2GS/s Digital Oscilloscope
4 Number of Channels
100 MHz Bandwidth
2 GSa/s Sample Rate
1 Mpts Memory Depth
7-inch WVGA (800 x 480) color display Display
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 100 MHz |
| Sample Rate | 2 GSa/s |
| Memory Depth | 1 Mpts |
| Display | 7-inch WVGA (800 x 480) color display |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Waveform Update Rate | 50,000 waveforms per second |
| Connectivity | USB Host, USB Device, LAN (LXI Core 2011) |
Keysight (Agilent) DSOX2014A 100MHz 4 Channel 2GS/s Digital Oscilloscope Options:
- DSOX2014A - AUTB - Can, Lin Serial Trigger & Decode, Plus Mask Limit Testing
- DSOX2014A - BDLB - I2C, Spi, And Uart, Can, And Lin Serial Trigger & Decode Plus Mask Limit Testing
- DSOX2014A - BW24 - Bandwidth Upgrade From 100 To 200 MHZ, 4-Ch Models
- DSOX2014A - GENB - I2C, Spi, And Uart (Rs232/422/485) Serial Trigger & Decode, Plus Mask Limit Testing
- DSOX2014A - GPIB - Plug-In Module To Support Gpib Connectivity
- DSOX2014A - LAN - Plug-In Module To Support Lan And Vga Connectivity
- DSOX2014A - MSO - Upgrade To 8 Digital Timing Channels
- DSOX2014A - PLUS - Upgrade For Units Older Than March 5, 2018
- DSOX2014A - WAVEGEN - License For Built-In 20 MHZ Function Generator
| Model | DSOX2014A |
|---|
The Keysight (Agilent) DSOX2014A is a 100 MHz, 4-channel digital oscilloscope offering 2 GSa/s sampling and 1 Mpts memory depth per channel. It features an 8.5" WVGA LCD display, 8-bit resolution (up to 12-bit with averaging), and 200,000 wfms/s update rate.
It supports protocol analysis, waveform generation, segmented memory, serial trigger/analysis, and connectivity through LAN and GPIB.
Testwall can supply the used Keysight (Agilent) DSOX2014A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX2014A.
