Keysight (Agilent)

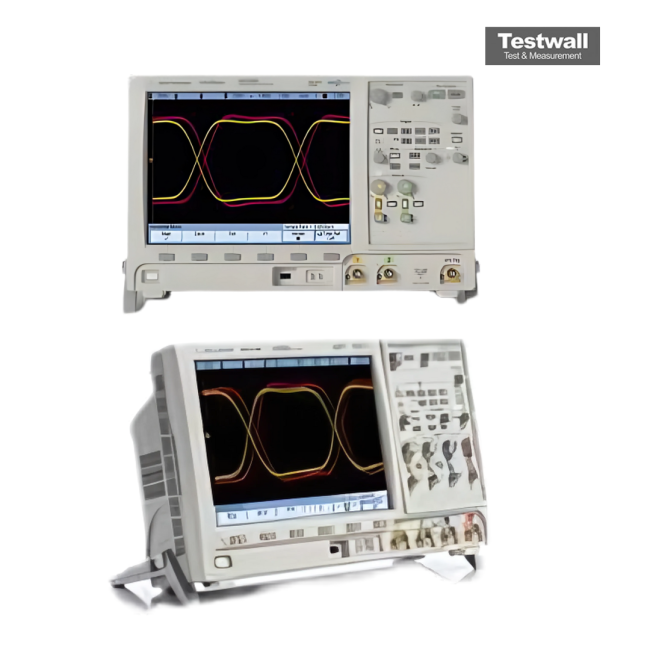

Keysight (Agilent) MSO7052A
500MHz - 4GSa/s Digital Oscilloscope
500 MHz Bandwidth
2 Number of Analog Channels
16 Number of Digital Channels
4 GSa/s Maximum Sample Rate
4 Mpts (standard), up to 8 Mpts with option Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Analog Channels | 2 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts (standard), up to 8 Mpts with option |
| Vertical Resolution | 8-bit |
| Rise Time | 700 ps |
| Display | 12.1-inch XGA color display |
| Timebase Range | 1 ns/div to 50 s/div |
| Input Impedance | 1 MΩ or 50 Ω selectable |
| Model | MSO7052A |
|---|
The Keysight (Agilent) MSO7054A delivers 500 MHz bandwidth across 4 analog and 16 digital channels, with a 4 GSa/s sampling rate and 8 Mpts MegaZoom III memory for precise, high-resolution signal analysis.
It supports advanced debugging with a 12.1” XGA display and a 100,000 wfms/s waveform update rate for dynamic signal visualization.
Testwall can supply the used MSO7054A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the MSO7054A.
