Keysight (Agilent)

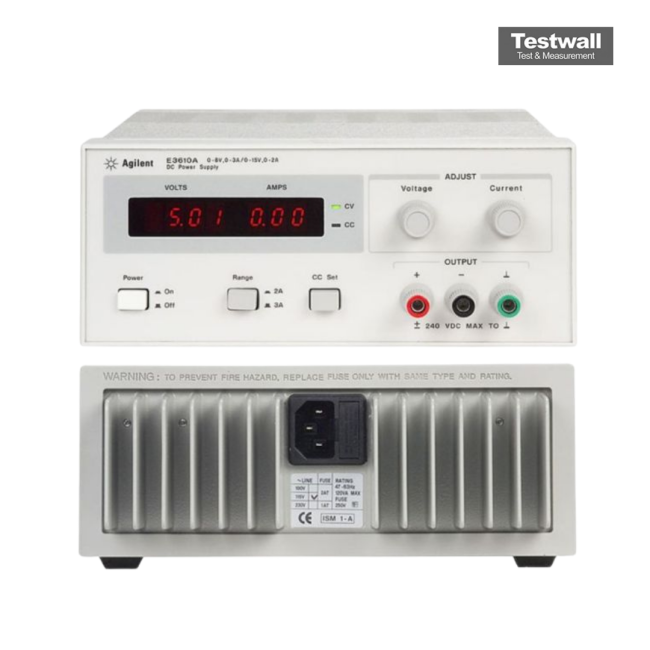

Keysight (Agilent) E3610A
Power Supply, 8V, 3A or 15V, 2A, 30W
0 to 8V / 0 to 15V (dual range) Output Voltage Range
0 to 3A / 0 to 2A (dual range) Output Current Range
30W Maximum Output Power
≤ 2 mV (CV mode) Load Regulation (Voltage)
≤ 2 mA (CC mode) Load Regulation (Current)
€200.00 excl. VAT + free EU delivery
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 8V / 0 to 15V (dual range) |
| Output Current Range | 0 to 3A / 0 to 2A (dual range) |
| Maximum Output Power | 30W |
| Load Regulation (Voltage) | ≤ 2 mV (CV mode) |
| Load Regulation (Current) | ≤ 2 mA (CC mode) |
| Line Regulation (Voltage) | ≤ 0.5 mV (CV mode) |
| Ripple and Noise (RMS Voltage) | ≤ 0.5 mV rms (20 Hz to 20 MHz) |
| Input Voltage | 115V / 230V AC ±10%, 47–63 Hz |
| Operating Temperature | 0°C to 40°C |
| Dimensions (W x H x D) | 212 mm x 104 mm x 348 mm (8.3 x 4.1 x 13.7 in) |
Keysight (Agilent) E3610A Options:
- E3610A - 0E3 - 230 Vac ±10%
- E3610A - 0EM - 115 Vac ±10%
- E3610A - 0E9 - 100 Vac ±10%
- E3610A - 0L2 - Extra Manual
| Model | E3610A |
|---|
The Agilent / HP E3610A 30 watt power supply is an affordable, full-featured benchtop power supply which provides excellent performance and flexibility.
Features and Specifications of the Agilent / HP E3610A include:
-
Output Ratings (Maximum cur is derated 1% per °C between 40 ° to 55 °C)
- Range 1: 0 to 8 V, 0 to 3 A
- Range 2: 0 to 15 V, 0 to 2 A
- Power (max): 30 W
Ripple & Noise from 20 Hz to 20 MHz
- Voltage rms: 200 µV
- Peak-to-Peak: 2 mV
Load & Line Regulation
- 0.01% + 2 mV
Meter Resolution
- Voltage: 10 mV
- Current: 10 mA
