Keysight (Agilent) E36231A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 30V |
| Output Current Range | 0 to 6A |
| Number of Outputs | Single Output |
| Maximum Output Power | 180W |
| Voltage Programming Accuracy | ±(0.05% + 10mV) |
| Current Programming Accuracy | ±(0.1% + 5mA) |
| Interfaces | USB, LAN (LXI Core), GPIB (optional) |
| Form Factor | Bench Top, Half Rack |
| Display | 3.5-inch Color TFT LCD |
| Operating Temperature | 0°C to 40°C |
Keysight (Agilent) E36231A Options:
- E36231A - SEC - NISPOM and file security
- E36231A - UK6 - Commercial calibration with test result data
| Model | E36231A |
|---|

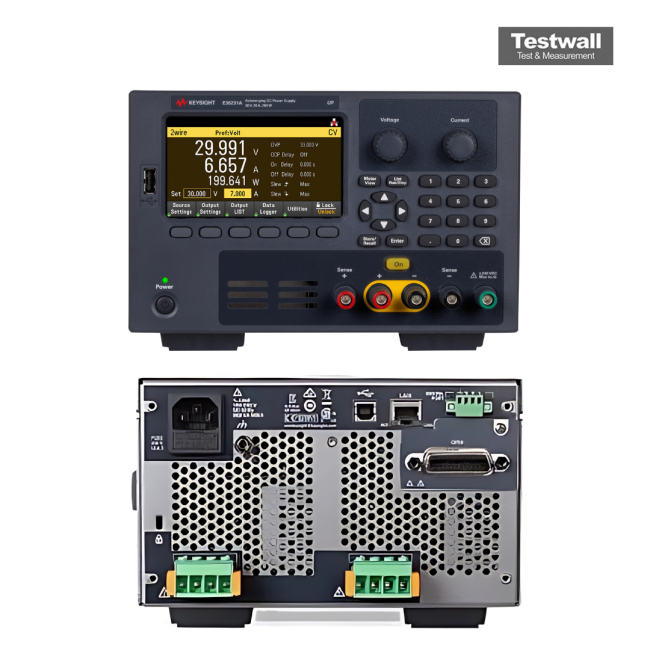

Keysight (Agilent) E36231A DC Power Supply
The Keysight E36231A single output power supplies are intended for your bench applications that require power up to 200 W. Autoranging technology gives you the highest cur available at all output voltage. Advance features include data logging, LIST mode, and synchronization through input and output triggers. High cur applications benefit from an adjustable slew rate and remote 4-wire sense. Adjustable slew rate is necessary to avoid large inrush currents while remote sense ensures the correct output voltage at the DUT compensating for losses in the leads due to the higher currents.
Making meaningful measurements starts with powering your device correctly. The E36231A provides clean power with less than 350 µVrms ripple and noise. Precise output control allows voltage set with 0.03% accuracy and cur set with 0.1% accuracy. For currents, a low measurement range of less than 100 mA improves the measurement resolution and accuracy. Load and line regulation better than 0.01% ensure a steady output when power line and load changes occur. The 4.3-inch LCD color display shows the voltage and cur of all channels with diffe views. Color coding of the knobs, display, and binding posts help avoid setup and connection errors. Two individual knobs for voltage and cur with rotary encoder control for precise setting and instrument keypad allows quick adjustments and configurations in less time.
Specifications for the Keysight (Agilent) E36231A DC Power Supply Include:
| Voltage | 0 to 30 V |
| Current | 0 to 20 A |
| Total Power | 200W |
| Voltage Readback Accuracy | 0.03% + 4 mV |
