Keysight (Agilent)

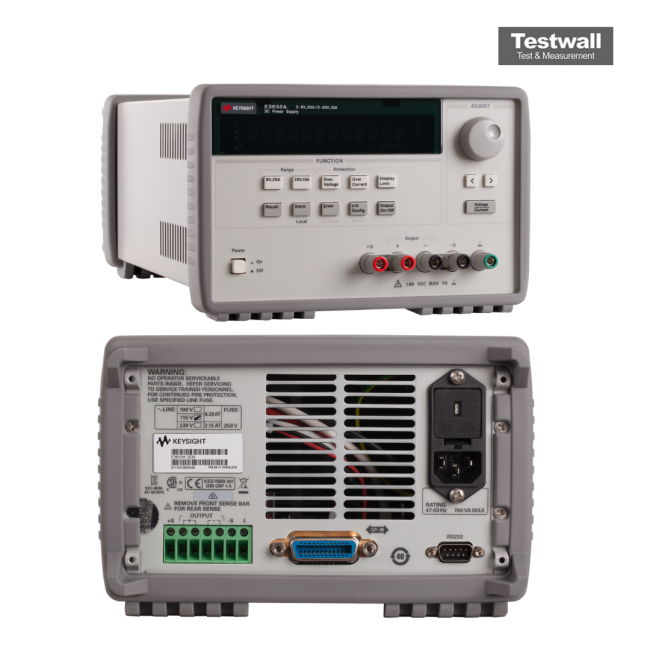

Keysight (Agilent) E3633A
Power Supply, 8V, 20A or 20V, 10A, 200W
0 to 8V / 0 to 20V (dual range) Output Voltage Range
0 to 20A / 0 to 10A (dual range) Output Current Range
200W Maximum Output Power
≤ 2mV Load Regulation (Voltage)
≤ 2mA Load Regulation (Current)
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 8V / 0 to 20V (dual range) |
| Output Current Range | 0 to 20A / 0 to 10A (dual range) |
| Maximum Output Power | 200W |
| Load Regulation (Voltage) | ≤ 2mV |
| Load Regulation (Current) | ≤ 2mA |
| Line Regulation (Voltage) | ≤ 0.5mV |
| Ripple and Noise (RMS Voltage) | ≤ 1mV rms (20Hz to 20MHz) |
| Programming Accuracy (Voltage) | ± (0.05% + 10mV) |
| Interface | GPIB (IEEE-488) and RS-232 |
| AC Input Power | 100/120/220/240 VAC, 47–63 Hz, 400W max |
Keysight (Agilent) E3633A Options:
- E3633A - 0E3 - 230 Vac ± 10%
- E3633A - 0EM - 115 Vac ± 10%
- E3633A - 0E9 - 100 Vac ± 10%
- E3633A - 0L2 - Extra manual sets
- E3633A - 1CM - Rackmount kit
- E3633A - UK6 - Commercial calibration with test result data
| Model | E3633A |
|---|
KEYSIGHT E3633A (AGILENT)
The Agilent 200W, GPIB, single output E3633A is a high performance supply optimized for manual and basic automated testing; and, with a combination of benchtop capabilities and system features, it is designed to help improve measurement quality and reduce test time.
Specifications of the Keysight E3633A (Agilent) Power Supply include:
Output Ratings
- Range 1: 0 to 8 V, 20 A
- Range 2: 0 to 20 V, 10 A
Programming Accuracy at 25 °C ±5 °C
- Voltage: 0.05% + 10 mV
- Current: 0.2% +10 mA
Ripple & Noise (20 Hz to 20 MHz)
- Normal-mode voltage:
- Normal-mode current:
- Common-mode current:
Readback Accuracy at 25 °C ±5 °C
- Voltage: 0.05% + 5 mV
- Current: 0.15% + 5 mA
