TDK-Lambda GENH300-2.5
| Attribute | Value |
|---|---|
| Output Voltage | 300 VDC |
| Output Current | 2.5 A |
| Output Power | 750 W |
| Input Voltage | 85–265 VAC (Universal Input) |
| Input Frequency | 47–63 Hz |
| Output Voltage Adjustability | 0–300 VDC (Programmable) |
| Output Current Adjustability | 0–2.5 A (Programmable) |
| Interface | Analog Programming and RS-232/RS-485 (Optional GPIB) |
| Cooling Method | Fan Cooled |
| Form Factor | 1U Rack Mount (19-inch) |
TDK-Lambda GENH300-2.5 Options:
- GENH300-2.5 - IEEE - GPIB Interface (IEEE 488.2 SCPI Compliant)
- GENH300-2.5 - IS510 - Voltage Programming Isolated Analog Interface (0-5V or 0-10V signal)
- GENH300-2.5 - IS420 - Current Programming Isolated Analog Interface (4-20mA signal)
- GENH300-2.5 - LAN - LAN Interface (LXI Compliant to Class C)
- GENH300-2.5 - GEN/E - AC Cord Set, Europe (10A/250Vac, L=2m, INT'L 7/VII, IEC320-C13)
- GENH300-2.5 - GEN/GB - AC Cord Set, United Kingdom (10A/250Vac, L=2m, BS1363, IEC320-C13)
- GENH300-2.5 - GEN/J - AC Cord Set, Japan (13A/125Vac, L=2m, IEC320-C13)
- GENH300-2.5 - GEN/I - AC Cord Set, Middle East (10A/250Vac, L=2m, SI-32, IEC320-C13)
- GENH300-2.5 - GEN/U - AC Cord Set, North America (13A/125Vac, L=2m, NEMA 5-15P, IEC320-C13)
- GENH300-2.5 - GENH/RM - Rack Mounting Kit (single or dual unit side-by-side in 19" rack, 1U height)
- GENH300-2.5 - GENH/MO - Benchtop Stacking Kit (zero stack, two or three units)
- GENH300-2.5 - GEN/485-9 - RS-485 Communication Cable (DB-9F, Shield Ground L=2m, RJ-45)
- GENH300-2.5 - GEN/232-9 - RS-232 Communication Cable (DB-9F, Shield Ground L=2m, RJ-45)
- GENH300-2.5 - GEN/232-25 - RS-232 Communication Cable (DB-25F, Shield Ground L=2m, RJ-45)
- GENH300-2.5 - GEN/RJ45 - Serial Link Cable, RS-485 (EIA/TIA-568A RJ-45, Shield Ground L=50cm, daisy-chain up to 31 units)
| Model | GENH300-2.5 |
|---|

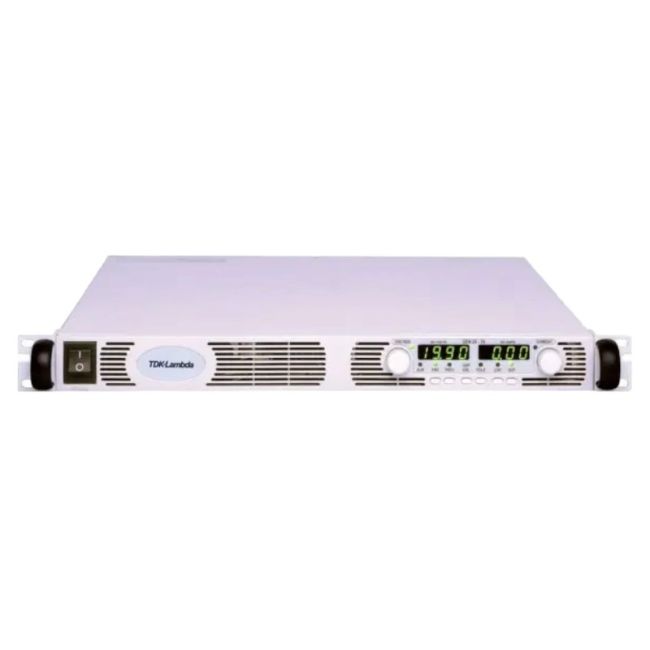

The TDK-Lambda GEN300-2.5 Genesys Power Supply is a high-power-density programmable AC/DC system in 1U, designed for OEM, industrial, and laboratory applications. It features low ripple and noise, RS-232/RS-485 interfaces, parallel operation with active current sharing, and optional user-friendly interfaces for flexible control.
This power supply offers precise voltage and current adjustments via an intuitive front panel with four-digit LED meters, fine or coarse encoders, Active Power Factor Correction of 0.99, Safe Re-Start, and Last Setting Memory, making it suitable for advanced system designs.
Testwall provides the TDK-Lambda GEN300-2.5 with expert support and global delivery. Our team ensures you receive used, fully tested units that maintain high performance and reliability, delivering unmatched service quality for your power supply needs.
Testwall can supply the used TDK-Lambda GEN300-2.5, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the TDK-Lambda GEN300-2.5.
