Keysight (Agilent)

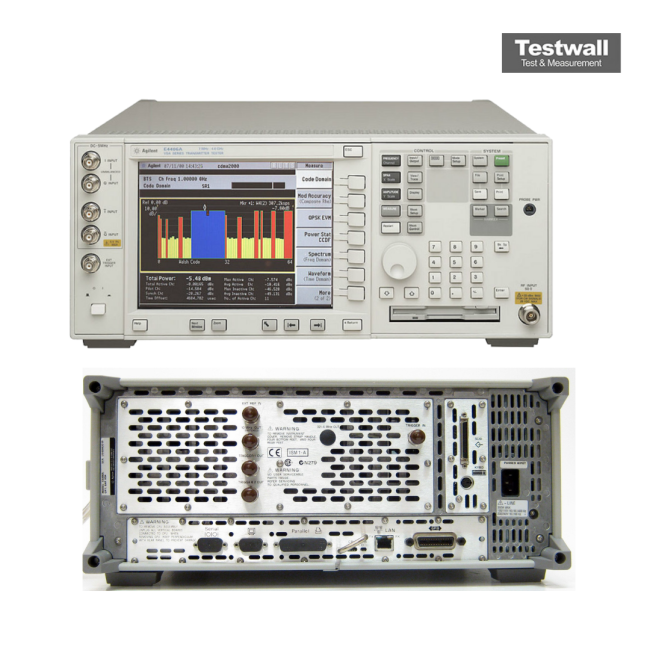

Keysight (Agilent) E4406A
VSA Series Transmitter Tester 7MHz-4GHz
7 MHz to 4 GHz Frequency Range
50 Ohms Input Impedance
-80 dBm to +30 dBm Display Range
Up to 5 MHz (standard), up to 15 MHz (optional) Analysis Bandwidth
±0.5 dB (typical) Amplitude Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 7 MHz to 4 GHz |
| Input Impedance | 50 Ohms |
| Display Range | -80 dBm to +30 dBm |
| Analysis Bandwidth | Up to 5 MHz (standard), up to 15 MHz (optional) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Dynamic Range | Up to 76 dB |
| Supported Standards | W-CDMA, cdma2000, NADC, PDC, GSM, EDGE, iDEN |
| RF Input Connector | Type N (female) |
| Power Requirements | 100–240 V AC, 50/60 Hz, 350 VA maximum |
| Operating Temperature Range | 0°C to 55°C |
Keysight (Agilent) E4406A VSA Series Transmitter Tester 7MHz-4GHz Options:
- E4406A - 202 - Edge With Gsm Measurement
- E4406A - 204 - 1Xev-D0 Measurement
- E4406A - 210 - Hsdpa Measurement
- E4406A - 214 - 1Xev-Dv Measurement
- E4406A - 300 - 321.4MHZ If Output
- E4406A - B78 - Cdma Measurement
- E4406A - B7C - Baseband I/Q Inputs
- E4406A - BAC - Cdmaone Measurement
- E4406A - BAE - Nadc, Pdc Measurement
- E4406A - BAF - W-Cdma Measurement
- E4406A - BAH - Gsm Measurement
- E4406A - HN1 - Widen/Iden Measurement
| Model | E4406A |
|---|
The Keysight (Agilent) E4406A VSA Series Transmitter Tester operates across 7 MHz to 314 MHz and 329 MHz to 4 GHz, offering a wide range of digital modulation analysis capabilities.
With its built-in, standards-compliant tests and easy one-button measurement configuration, it is ideal for testing wireless base stations and mobile transmitters.
Testwall can supply the used Keysight (Agilent) E4406A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E4406A.
