Keysight (Agilent) N9040B-508
| Attribute | Value |
|---|---|
| Frequency Range | 3 Hz to 8 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical, preamp on, 1 GHz) |
| Phase Noise | -130 dBc/Hz at 1 GHz carrier, 10 kHz offset (typical) |
| Amplitude Accuracy | ±0.19 dB (total uncertainty, typical) |
| Dynamic Range | Up to 78 dB (TOI - DANL) |
| Resolution Bandwidth (RBW) | 1 Hz to 8 MHz (–3 dB bandwidths) |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 W) at the RF input port |
| Third-Order Intercept (TOI) | +18 dBm (typical, preamp off, 1 GHz) |
| Sweep Time | 1 ms to 4000 s (span > 0 Hz) |
Keysight Technologies N9040B-508 Options:
- N9040B-508 - 508 - Frequency range 3 Hz to 8.4 GHz (DC coupled)
- N9040B-508 - 513 - Frequency range 3 Hz to 13.6 GHz (DC coupled)
- N9040B-508 - 526 - Frequency range 3 Hz to 26.5 GHz (DC coupled)
- N9040B-508 - 544 - Frequency range 3 Hz to 44 GHz (DC coupled)
- N9040B-508 - 550 - Frequency range 3 Hz to 50 GHz (DC coupled)
- N9040B-508 - P08 - Preamplifier, 9 kHz to 8.4 GHz
- N9040B-508 - P13 - Preamplifier, 9 kHz to 13.6 GHz
- N9040B-508 - P26 - Preamplifier, 9 kHz to 26.5 GHz
- N9040B-508 - P44 - Preamplifier, 9 kHz to 44 GHz
- N9040B-508 - P50 - Preamplifier, 9 kHz to 50 GHz
- N9040B-508 - EA3 - Electronic attenuator, 3 Hz to 3.6 GHz, 0 to 24 dB in 1 dB steps
- N9040B-508 - C35 - APC 3.5 mm male RF input connector (with Option 526 only)
- N9040B-508 - B25 - 25 MHz analysis bandwidth (standard)
- N9040B-508 - B40 - 40 MHz analysis bandwidth
- N9040B-508 - B2X - 255 MHz analysis bandwidth
- N9040B-508 - B5X - 510 MHz analysis bandwidth
- N9040B-508 - H1G - 1 GHz analysis bandwidth
- N9040B-508 - NF2 - Noise Floor Extension
- N9040B-508 - EMC - EMC bandwidth (CISPR and MIL STD 461E compliant bandwidths)
- N9040B-508 - RT1 - Real-time spectrum analyzer, basic detection
- N9040B-508 - RT2 - Real-time spectrum analyzer, optimal detection
- N9040B-508 - DUA - Dual real-time analysis, up to 2 x 255 MHz at same center frequency
- N9040B-508 - RTS - Real-time I/Q data streaming
- N9040B-508 - ALV - Fast log video output
- N9040B-508 - CRP - Programmable IF output, 10 to 75 MHz center frequency
- N9040B-508 - YAV - Y-axis video output
- N9040B-508 - DP4 - Extended memory for data acquisition
| Model | N9040B-508 |
|---|

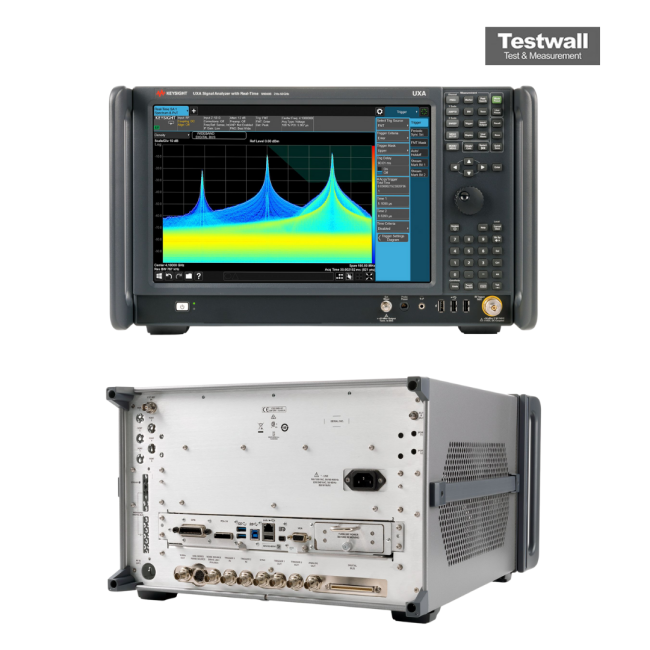

The Keysight (Agilent) N9040B-508 UXA Signal Analyzer offers a superior 2 Hz to 8.4 GHz frequency range and up to 1 GHz real-time bandwidth, making it ideal for complex RF environments. Its industry-leading phase noise, real-time spectrum analysis, and vector signal analysis capabilities ensure precise performance for advanced applications. The large 14.1” high-resolution touch display enhances usability and data visualization.
Engineered for 5G NR testing and EVM analysis, the N9040B-508 supports modular upgrades to extend system capability and futureproof investments. Suitable for dense signal environments.
Testwall can supply the used Keysight (Agilent) N9040B-508, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9040B-508.
