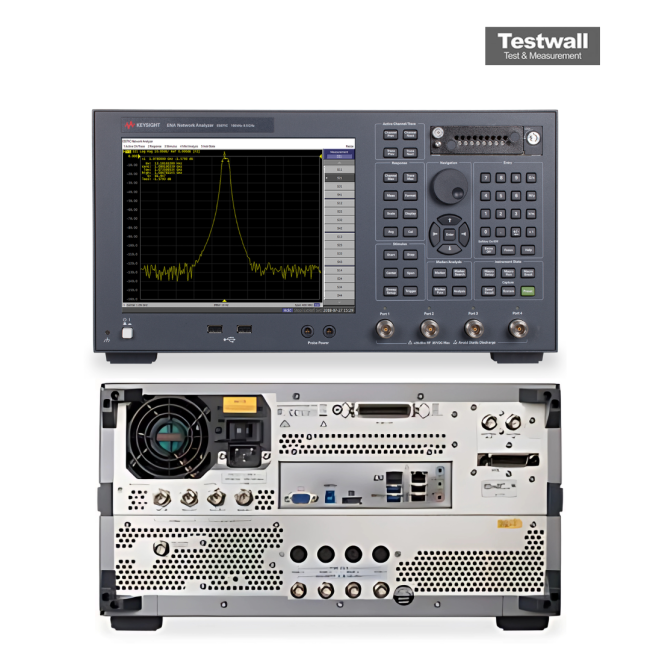

Keysight (Agilent) E5071C 9kHz to 8.5GHz Network Analyser (4 Port)
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 8.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 132 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Measurement Speed | Up to 4.8 ms per point (fast sweep mode) |
| Number of Test Points | 2 to 100,001 points |
| Connector Type | N-Type 50 Ohm (standard) |
| Display | 10.4-inch XGA color LCD touchscreen |
| Interface | GPIB, USB, LAN (LXI Class C compliant) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Keysight Technologies E5071C 9kHz to 8.5GHz Network Analyser (4 Port) Options:
- E5071C - 440 - 4-port test set, 9 kHz to 4.5 GHz without bias tees
- E5071C - 445 - 4-port test set, 100 kHz to 4.5 GHz with bias tees
- E5071C - 460 - 4-port test set, 9 kHz to 6.5 GHz without bias tees
- E5071C - 465 - 4-port test set, 100 kHz to 6.5 GHz with bias tees
- E5071C - 480 - 4-port test set, 9 kHz to 8.5 GHz without bias tees
- E5071C - 485 - 4-port test set, 100 kHz to 8.5 GHz with bias tees
- E5071C - 4D5 - 4-port test set, 300 kHz to 14 GHz with bias tees
- E5071C - 4K5 - 4-port test set, 300 kHz to 20 GHz with bias tees
- E5071C - 1E5 - High-stability frequency reference (oven-controlled oscillator)
| Model | E5071C |
|---|
The Keysight (Agilent) E5071C ENA Vector Network Analyzer offers a frequency range from 9 kHz to 8.5 GHz with advanced performance features such as <0.004 dB rms trace noise, >123 dB dynamic range, and 0.005 dB/°C temperature stability. Designed with fast measurement speed of 9 ms for 401 points and up to 22-port configuration via E5092A, it supports both 2-port and 4-port models with powerful error correction and high-speed serial interconnect analysis.
Ideal for wireless communications, automotive, semiconductor, and medical sectors, the E5071C excels in R&D and manufacturing with its versatile performance, VBA programming, and advanced mixer/amplifier characterization capabilities.
Testwall can supply the used Keysight (Agilent) E5071C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5071C.
