Keysight (Agilent)
Keysight (Agilent) E5081A
2/4-port, 10 MHz to 44 GHz ENA-X Network Analyzer
10 MHz to 44 GHz Frequency Range
2/4 Number of Ports
146 dB (spec.), 153 dB (typ.) Dynamic Range
-80 dBm … +16 dBm Output Power Range
50 Ω Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 44 GHz |
| Number of Ports | 2/4 |
| Dynamic Range | 146 dB (spec.), 153 dB (typ.) |
| Output Power Range | -80 dBm … +16 dBm |
| Impedance | 50 Ω |
| Connector Type | 3.5 mm (m) |
| IF Bandwidth | 1 Hz … 15 MHz |
| Number of Points | max. 100,003 |
| Trace Noise | 0.0017 dB rms |
| Measurement Parameters | S-parameters, modulation distortion (opt.), noise figure (opt.), spectrum analysis (opt.), pulsed RF |
| Display | 12.1" LCD, 1280×800, touchscreen |
| Interfaces | 2× LAN, USB, GPIB (opt.), DisplayPort |
| Series | ENA-X |
Available configurations
| Model | Ports | Frequency range | Configuration |
| E5081A-2K5 | 2 | 10 MHz to 20 GHz | full S-parameter test set |
| E5081A-2K6 | 2 | 10 MHz to 20 GHz | full S-parameter test set, upconverter for modulation-distortion measurements |
| E5081A-2N5 | 2 | 10 MHz to 44 GHz | full S-parameter test set |
| E5081A-2N6 | 2 | 10 MHz to 44 GHz | full S-parameter test set, upconverter for modulation-distortion measurements |
| E5081A-2N7 | 2 | 10 MHz to 44 GHz | full S-parameter test set, upconverter for modulation-distortion measurements |
| E5081A-4K5 | 4 | 10 MHz to 20 GHz | full S-parameter test set |
| E5081A-4K6 | 4 | 10 MHz to 20 GHz | full S-parameter test set, upconverter for modulation-distortion measurements |
| E5081A-4N5 | 4 | 10 MHz to 44 GHz | full S-parameter test set |
| E5081A-4N6 | 4 | 10 MHz to 44 GHz | full S-parameter test set, upconverter for modulation-distortion measurements |
| E5081A-4N7 | 4 | 10 MHz to 44 GHz | full S-parameter test set, upconverter for modulation-distortion measurements |
Keysight (Agilent) E5081A ENA-X Vector Network Analyzer Options:
- E5081A - 2K5 - 2 Port, 10 MHZ To 20 GHZ
- E5081A - 2K6 - 2 Port, 10 MHZ To 20 GHZ, Upconverter For Modulation Distortion
- E5081A - 2N5 - 2 Port, 10 MHZ To 44 GHZ
- E5081A - 2N6 - 2 Port, 10 MHZ To 44 GHZ, Upconverter For Modulation Distortion
- E5081A - 2N7 - 2 Port, 10 MHZ To 44 GHZ, Upconverter For Modulation Distortion, Limited
- E5081A - 4K5 - 4 Port, 10 MHZ To 20 GHZ
- E5081A - 4K6 - 4 Port, 10 MHZ To 20 GHZ, Upconverter For Modulation Distortion
- E5081A - 4N5 - 4 Port, 10 MHZ To 44 GHZ
- E5081A - 4N6 - 4 Port, 10 MHZ To 44 GHZ, Upconverter For Modulation Distortion
- E5081A - 4N7 - 4 Port, 10 MHZ To 44 GHZ, Upconverter For Modulation Distortion, Limited

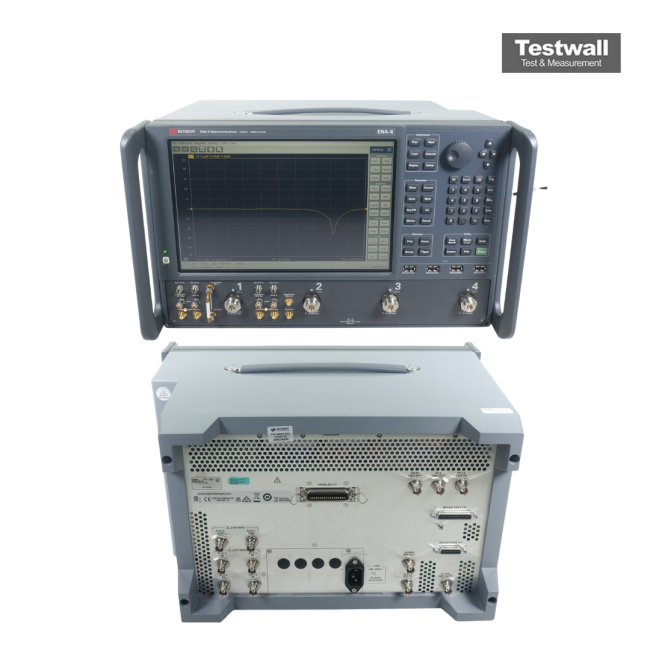

The Keysight (Agilent) E5081A is a 2/4-port ENA-X vector network analyzer covering 10 MHz to 44 GHz.
Testwall can supply the used Keysight (Agilent) E5081A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5081A.
