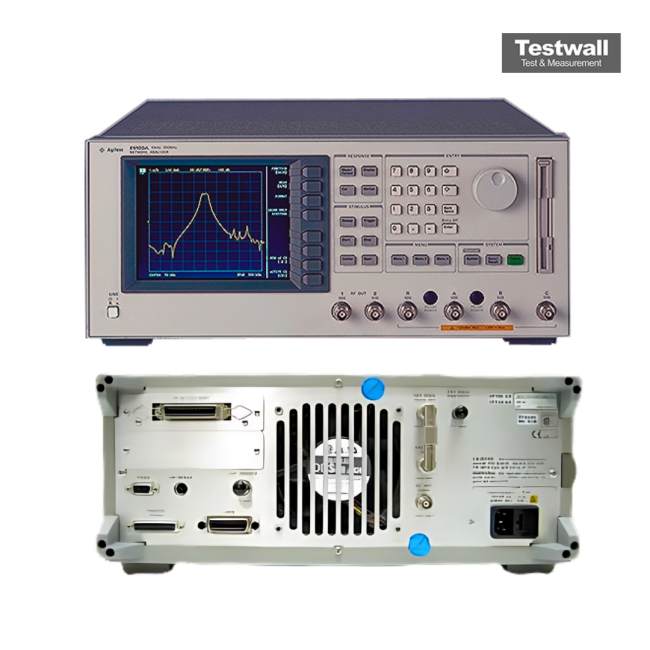

Keysight (Agilent) E5100A
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz to 300 MHz |
| Measurement Parameters | |Z|, |Y|, θ, R, X, G, B, Cs, Cp, Ls, Lp, D, Q, Rp, Rs, Np, Ns |
| Impedance Measurement Range | 1 mΩ to 100 MΩ |
| Basic Impedance Accuracy | ±0.05% |
| Oscillator Level (Voltage) | 10 mV to 1 Vrms |
| Oscillator Level (Current) | 200 μA to 20 mArms |
| DC Bias Voltage | 0 to ±40 V |
| Display | Dual channel display with sweep measurement capability |
| Interface | GPIB (IEEE-488) |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz |
Keysight (Agilent) E5100A 10kHz-300MHz High Speed Network Analyser Options:
- E5100A - 001 - One Rf Out Port
- E5100A - 002 - Two Rf Out Ports, Built In Power Splitter
- E5100A - 003 - Two Rf Out Ports, Switched Single Output
- E5100A - 006 - Parallel I/O Mode B
- E5100A - 010 - Extended Output Power Range
- E5100A - 023 - Phase Tracking Function For 300MHZ
- E5100A - 1CM - Rackmount Kit
- E5100A - 1CN - Handle Kit
- E5100A - 1CP - Rackmount And Handle Kit
- E5100A - 1D5 - High Stability Frequency Reference
- E5100A - 1F0 - Pc Style Keyboard - U.S. Version
- E5100A - 218 - 180 MHZ, 2 Receivers, Ports R And A
- E5100A - 400 - 300MHZ, 4 Receivers, Ports R, A, B And C
- E5100A - 600 - 300MHZ X'Tal Resonator Test To Use W/Pi-Network
- E5100A - 618 - 180MHZ X 椴哥划蹇涘礈閻愨枙闁革妇娉 Resonator Test W/Pi-Network
- E5100A - 701 - Bnc 50 O Input Connector On Port A
- E5100A - 706 - Type-N 50 Ohm Input Connectors, Ports A And B
- E5100A - 801 - Power Extended 1 Rf Out Port
- E5100A - 823 - Phase Tracking Function For 180 MHZ Ver.
- E5100A - UK6 - Commercial Cal. Certificate With Test Data
- E5100A - UKR - Delete Instrument Basic
| Model | E5100A |
|---|
The Keysight (Agilent) E5100A is a 10 kHz to 300 MHz high-speed network analyzer designed for electronic component production, especially filters and resonators. It features fast sweep speeds (0.04 ms/point), low-noise performance, and precise IFBW control, enabling high-quality, repeatable measurements.
Its processing capabilities and flexible configuration support high-throughput testing, with a cost-effective 180 MHz version for lower frequency applications offering the same accuracy.
Testwall can supply the used Keysight (Agilent) E5100A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5100A.
