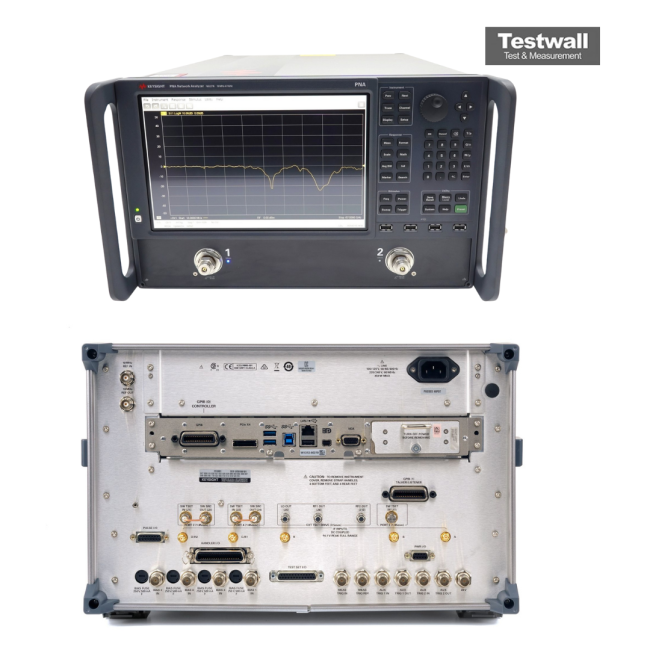

Keysight (Agilent) N5227B-400
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 67 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 122 dB |
| Output Power Range | -90 dBm to +13 dBm |
| Trace Noise | 0.001 dB RMS at 10 Hz IF bandwidth |
| Test Port Connector Type | 1.85 mm (male) |
| IF Bandwidth Range | 1 Hz to 1.5 MHz |
| Number of Points per Sweep | 1 to 100,001 |
| Measurement Parameters | S-parameters, H-parameters, Y-parameters, Z-parameters, group delay, phase, magnitude |
| Power Supply Input | 100–240 VAC, 50/60 Hz |
| Display | 12.1" LCD, 1280×800, touchscreen |
| Interfaces | LAN, 2× GPIB, USB, HiSLIP |
Available configurations
| Model | Ports | Frequency range | Configuration |
| N5227B-200 | 2 | 10 MHz to 67 GHz | standard test set |
| N5227B-201 | 2 | 10 MHz to 67 GHz | configurable test set |
| N5227B-205 | 2 | 900 Hz to 67 GHz | configurable test set, low-frequency extension to 900 Hz |
| N5227B-219 | 2 | 10 MHz to 67 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5227B-400 | 4 | 10 MHz to 67 GHz | |
| N5227B-401 | 4 | 10 MHz to 67 GHz | configurable test set |
| N5227B-405 | 4 | 900 Hz to 67 GHz | configurable test set, low-frequency extension to 900 Hz |
| N5227B-419 | 4 | 10 MHz to 67 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
Keysight Technologies N5227B-400 Options:
- N5227B-400 - 200 - 2-port base model with standard test set
- N5227B-400 - 201 - To base model, adds front-panel jumpers and R1 receiver switch
- N5227B-400 - 205 - To base model, adds front-panel jumpers, R1 receiver switch, and low frequency extension (LFE)
- N5227B-400 - 219 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees
- N5227B-400 - 400 - 4-port base model with standard test set
- N5227B-400 - 401 - To base model, adds front-panel jumpers and R1 receiver switch
- N5227B-400 - 419 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees

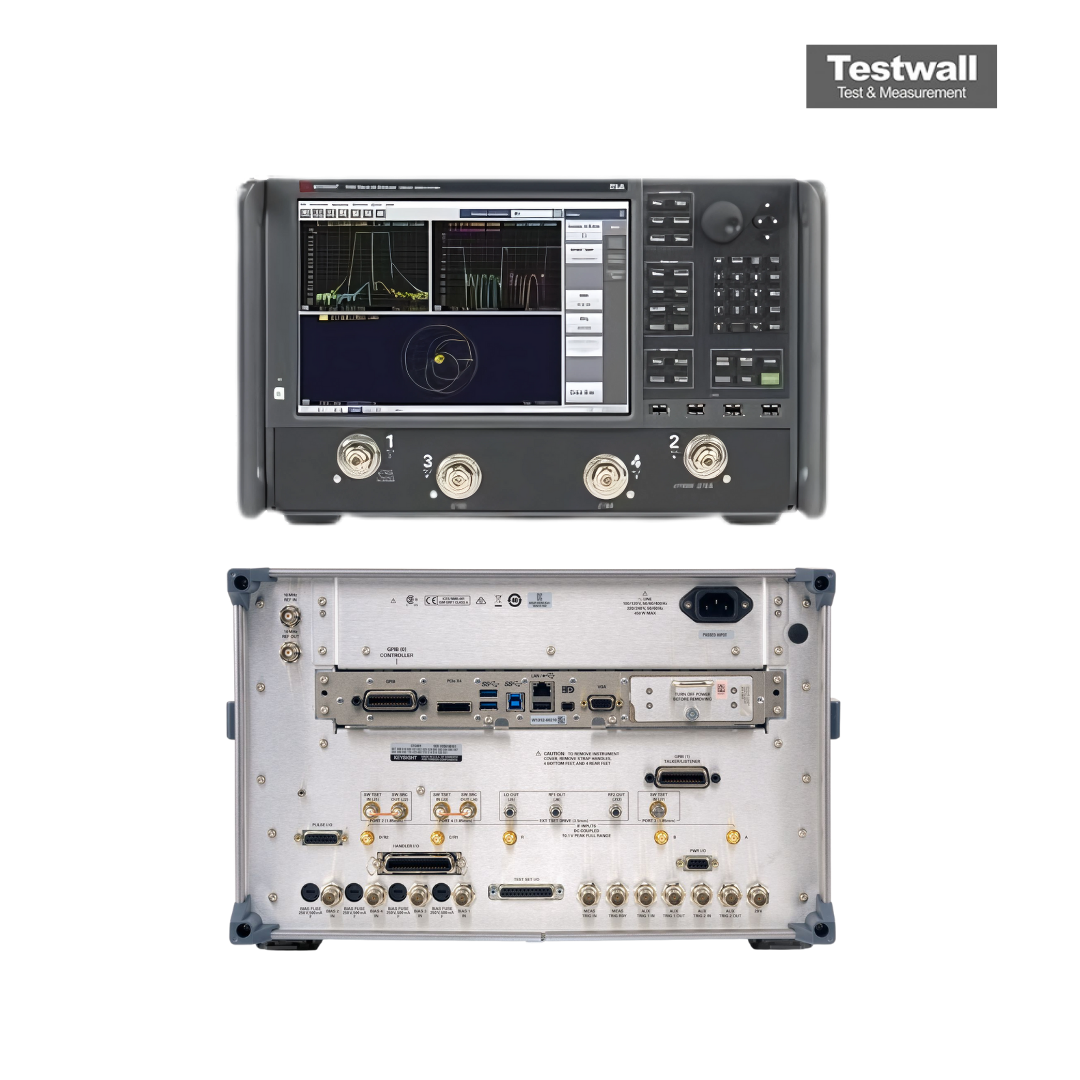

The Keysight (Agilent) N5227B-400 features a 4-port dual-source configuration and extends functionality from the N5227A-400 with updated front-panel enhancements and flexible receiver switching, including jumper and R1 options. Operating up to 67 GHz, it excels in demanding RF scenarios with bias-tees and advanced triggering capabilities.
It supports additional receiver switching, jumper routing, and a rich I/O interface including pulse modulators and bias connections, maintaining a high dynamic range and low-noise profile.
Testwall can supply the used Keysight (Agilent) N5227B-400, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5227B-400.
