Keysight (Agilent)
Keysight (Agilent) E5346A
High Density Probe Adapter, 38 Pin
High Density (HD) to Flying Lead Probe Interface Interface Type
Keysight 16900 Series, 16800 Series Logic Analyzers Compatible Instruments
38-pin High Density (HD) Connector Connector Type
17 Channels per connector Number of Channels
6 inches (152.4 mm) flying lead cable Cable Length
| Attribute | Value |
|---|---|
| Interface Type | High Density (HD) to Flying Lead Probe Interface |
| Compatible Instruments | Keysight 16900 Series, 16800 Series Logic Analyzers |
| Connector Type | 38-pin High Density (HD) Connector |
| Number of Channels | 17 Channels per connector |
| Cable Length | 6 inches (152.4 mm) flying lead cable |
| Lead Pitch Compatibility | Compatible with 0.1 inch (2.54 mm) pitch target connectors |
| Termination Style | Individual flying lead terminations with grabber-compatible tips |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Compliance | CE Compliant, RoHS Compliant |
Keysight (Agilent) E5346A Options:
- E5346A - E5403A - Kit of five additional Pro Series soft touch retention modules
- E5346A - E5387-68701 - Kit of five additional soft touch retention modules
- E5346A - E5396-68702 - Kit of five additional half-size soft touch retention modules
- E5346A - 5959-9333 - Probe leads (contains 5 probe leads)
- E5346A - 5959-9334 - Short ground leads (contains 5 short ground leads)
- E5346A - 5959-9335 - Common ground leads/pod grounds (contains 5 pod grounds)
- E5346A - 5090-4833 - SMD IC clips (contains 20 clips)
- E5346A - 10467-68701 - Twin hook 0.5 mm IC clips (contains four 0.5 mm IC clips)
- E5346A - 1252-7431 - AMP Mictor 38-pin connector (AMP 2-767004-2)
- E5346A - 1253-3620 - 100-pin Samtec connector (Samtec part number ASP-65067-01)
- E5346A - 5062-7396 - Surface mount isolation network for E5351A on-board termination
- E5346A - 01650-63203 - Isolation adapter with self-contained isolation networks
| Model | E5346A |
|---|

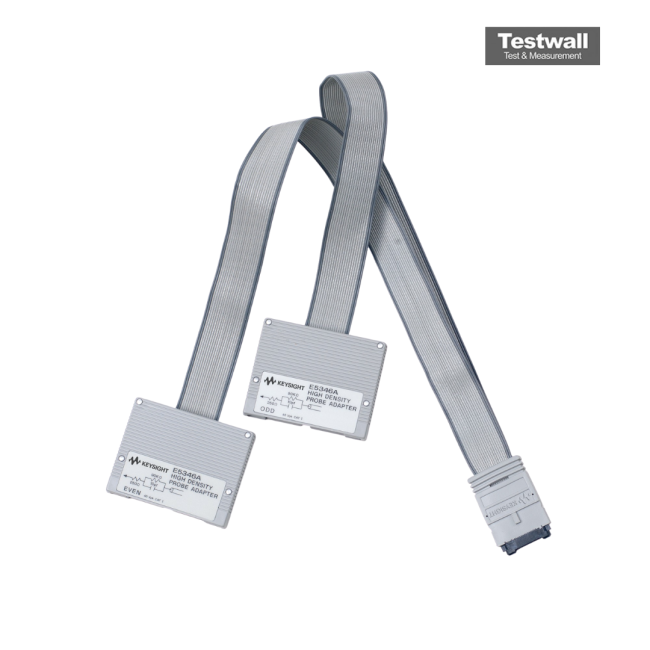

HP Agilent E5346A High Density Probe Adapter
