Keysight (Agilent) E8257D-567
| Attribute | Value |
|---|---|
| Frequency Range | 250 kHz to 67 GHz |
| Output Power Range | +20 dBm to -20 dBm (typical, frequency dependent) |
| Phase Noise | -115 dBc/Hz at 10 kHz offset (1 GHz carrier, typical) |
| Frequency Resolution | 0.001 Hz |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation |
| Spectral Purity | Ultra-low phase noise performance optimized for demanding applications |
| Output Connector | 2.4 mm (female) |
| Reference Frequency | Internal 10 MHz reference, external reference input supported |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Interface/Connectivity | GPIB, LAN (LXI), USB |
| Model | E8257D-567 |
|---|

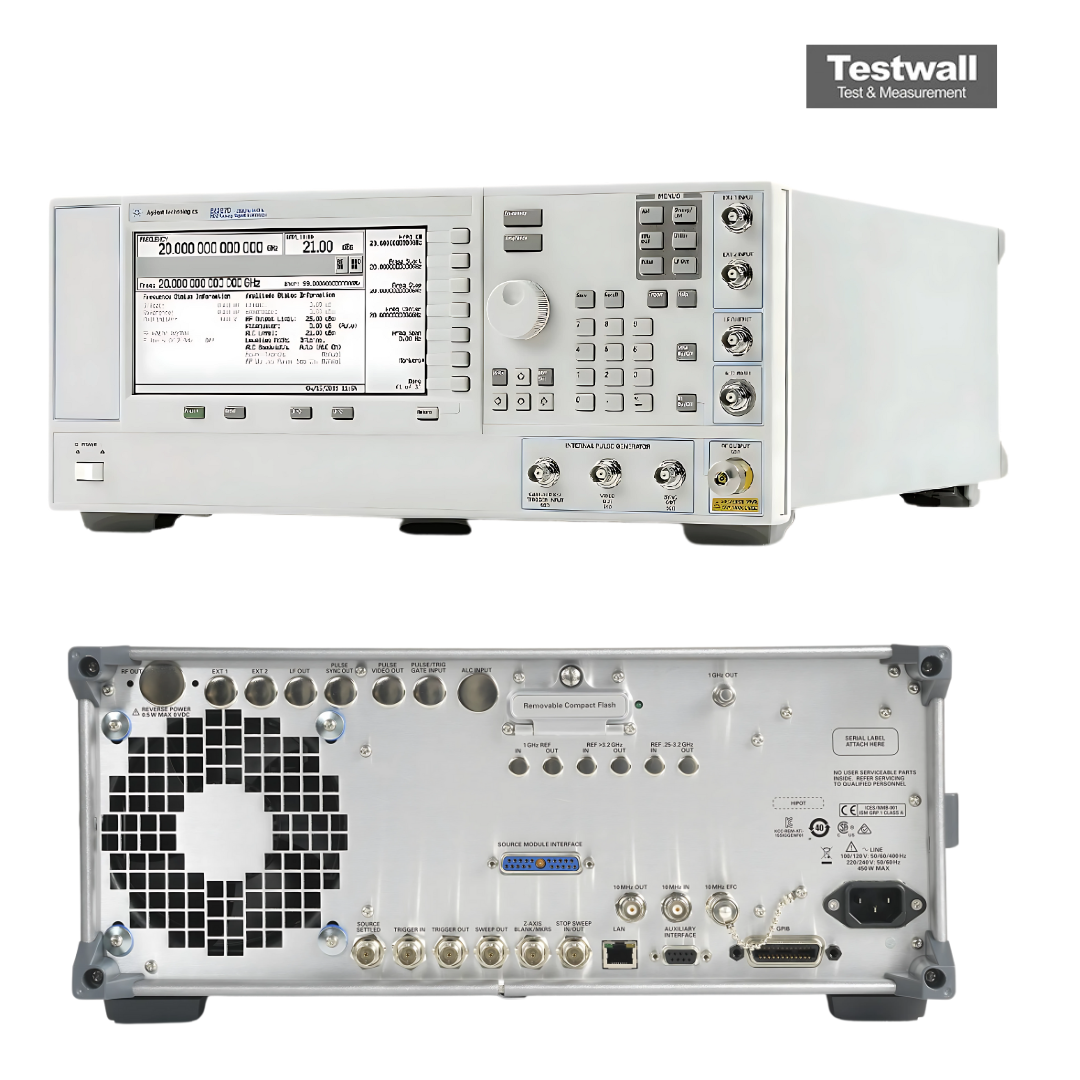

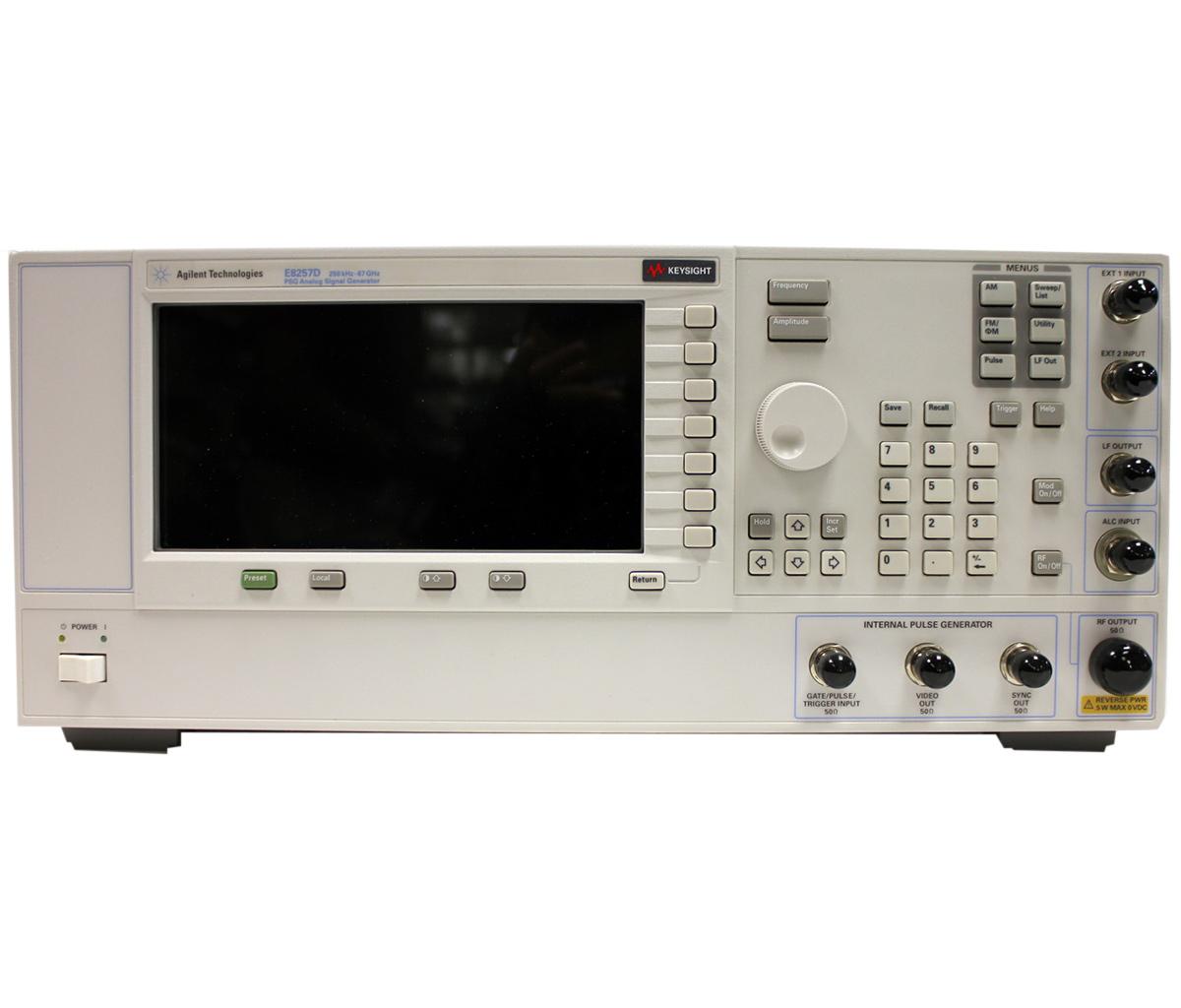

The Keysight (Agilent) E8257D-567 PSG Signal Generator spans a wide frequency range from 250 kHz to 67 GHz (upgradable to 70 GHz), offering metrology-grade output and precision. It supports high output power up to +30 dBm and features ultra-low phase noise at –91 dBc/Hz offset @10 GHz. With support for AM, FM, PM, and Pulse modulation, this unit ensures high-level accuracy and minimal distortion, essential for advanced RF applications.
Ideal for LO substitution and channel selectivity testing, the E8257D-567 reduces the need for external amplifiers and includes an optional UNX upgrade for extended functionality.
Testwall can supply the used Keysight (Agilent) E8257D-567, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8257D-567.
