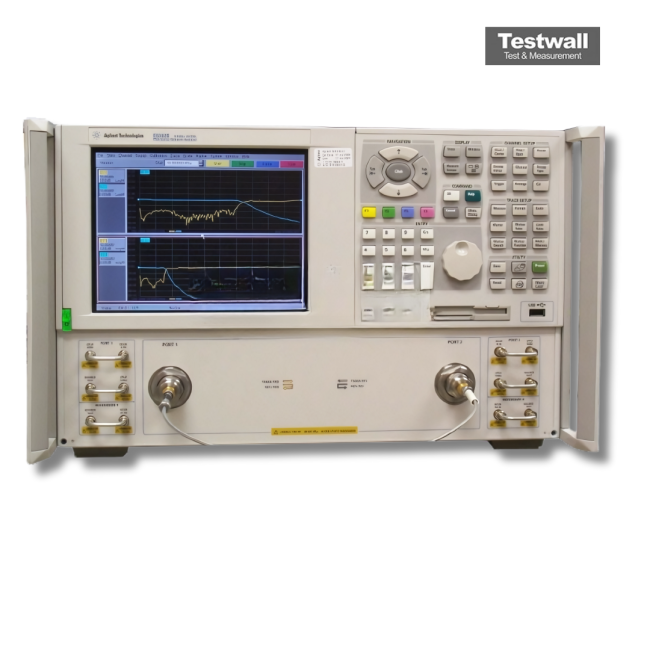

Keysight (Agilent) E8362B
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 146 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Trace Noise (Magnitude) | 0.001 dB RMS at 10 Hz IF bandwidth |
| Test Port Connector Type | 2.4 mm (female) |
| IF Bandwidth Range | 1 Hz to 125 kHz |
| Number of Data Points per Sweep | 1 to 32,001 |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, group delay |
| Power Supply | 100–240 V AC, 50/60 Hz, 350 W maximum |
Keysight (Agilent) E8362B Options:
Options available for the Keysight (Agilent) PNA series microwave network analyzers (E8361/E8362/E8363/E8364). Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- E8362B - 010 - Time-domain measurements
- E8362B - 014 - Configurable test set (front-panel access loops)
- E8362B - UNL - Extended power range and bias-tees
- E8362B - 016 - Receiver attenuators
- E8362B - 080 - Frequency-offset mode
- E8362B - 081 - Reference receiver switch
- E8362B - 082 - Scalar-calibrated converter measurements
- E8362B - 083 - Frequency converter application with vector-calibrated measurements
- E8362B - H08 - Pulsed-RF measurement capability
- E8362B - H11 - IF access
- E8362B - 1CM - Rack mount kit
- E8362B - 1CP - Rack mount kit with handles
The Keysight (Agilent) E8362B PNA Vector Network Analyzer operates from 10MHz to 20GHz, offering 125dB dynamic range and <0.006dB trace noise at 1kHz IFBW. Its 32 channels handle up to 16,001 points each, ensuring precise data across wide frequencies.
This analyzer enables accurate mixer and amplifier measurements with frequency-offset capability, alongside fast sweeps and TRM/LRM calibration for on-wafer and in-fixture testing.
Testwall can supply the used Keysight (Agilent) E8362B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8362B.
