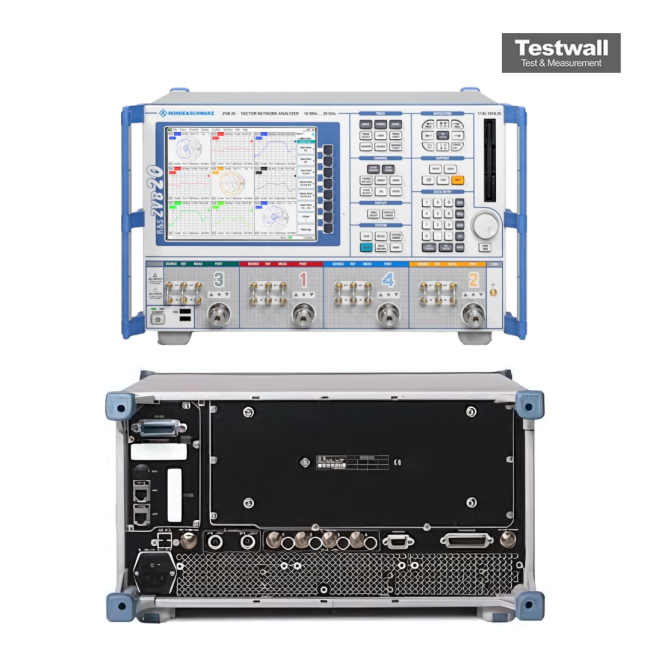

Rohde & Schwarz ZVB20
10MHz - 20GHz Vector Network Analyser
300 kHz to 20 GHz Frequency Range
2 or 4 ports Number of Test Ports
Up to 140 dB Dynamic Range
-50 dBm to +10 dBm Output Power Range
Up to 4 ms per 201-point sweep Measurement Speed
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 20 GHz |
| Number of Test Ports | 2 or 4 ports |
| Dynamic Range | Up to 140 dB |
| Output Power Range | -50 dBm to +10 dBm |
| Measurement Speed | Up to 4 ms per 201-point sweep |
| Trace Noise | 0.002 dB RMS at 10 Hz IF bandwidth |
| IF Bandwidth | 1 Hz to 500 kHz |
| Port Impedance | 50 Ohm |
| Connector Type | N-type female (50 Ohm) |
| Display | 10.4-inch XGA color LCD touchscreen |
Rohde & Schwarz ZVB20 Options:
- ZVB20 - R&S ZVAB-B4 - Oven Quartz (OCXO)
- ZVB20 - R&S ZVAB-K2 - Time Domain
- ZVB20 - R&S ZVB-K3 - Mixer and Harmonic Measurements
| Model | ZVB20 |
|---|
The Rohde & Schwarz ZVB20 is a 2-port compact Vector Network Analyzer offering a frequency range of 10MHz to 20GHz. It delivers a wide dynamic range of >123 dB and high output power of +13 dBm, with support for high-speed parallel measurements.
Designed for efficient multiport measurements, the ZVB20 enables quick analysis of SAW filters, duplex filters, and antenna modules through dual-port parallel testing.
Testwall can supply the used Rohde & Schwarz ZVB20, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZVB20.
