Keysight (Agilent)

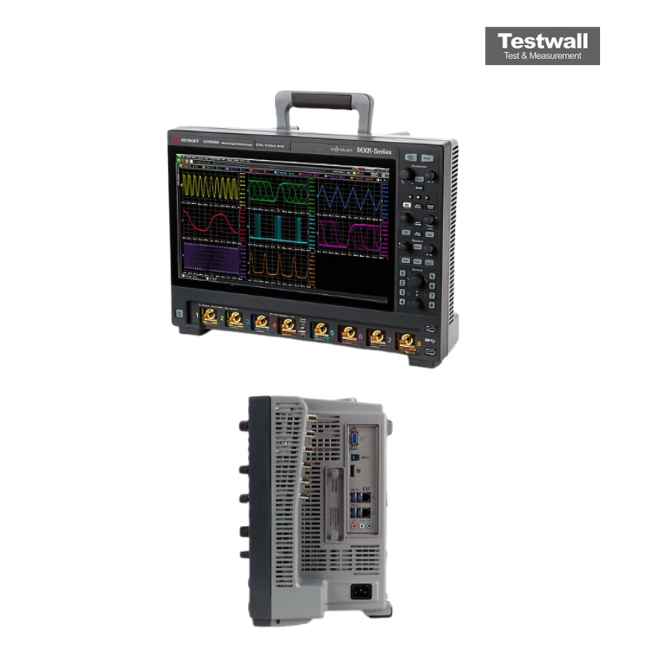

Keysight (Agilent) MXR108A
1GHz 8 Channel 16GS/s Digital Oscilloscope
1 GHz Bandwidth
8 Number of Channels
16 GSa/s (single channel), 8 GSa/s (all channels) Sample Rate
up to 800 Mpts per channel Memory Depth
12-bit ADC (16-bit in high-resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 8 |
| Sample Rate | 16 GSa/s (single channel), 8 GSa/s (all channels) |
| Memory Depth | up to 800 Mpts per channel |
| Vertical Resolution | 12-bit ADC (16-bit in high-resolution mode) |
| Display | 15.6-inch capacitive touchscreen, 1920 x 1080 resolution |
| Waveform Update Rate | up to 1,000,000 waveforms per second |
| Input Impedance | 50 Ω or 1 MΩ |
| Time Base Range | 200 ps/div to 500 s/div |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
| Model | MXR108A |
|---|
Keysight (Agilent) MXR108A 1GHz 8 Channel 16GS/s Digital Oscilloscope Description: 1 GHz Bandwidth 8 Analog Channels 16 Digital Channels Vertical Resolution: 10 bits (up to 16 Bits with high resolution) 16 GSa/s Maximum Sample Rate 200 Mpts/channel of Standard Memory Integrated 4-digit DVM & 10-digit counter The Keysight MXR108A is an 8 Channel 1GHz Analog Bandwidth Infiniium MXR-Series oscilloscope with a maximum sample rate of 16GSa/s. The MXR108A features a 15.6闁艰鲸绮忛崜楣冩 full HD touch screen display with dual screen support. The Infiniium MXR-Series offers up to 6 GHz bandwidth and 16 GSa/s sample rate on each channel (four and eight channel versions are available). An integrated 4 digit DVM and 10 digit counter are installed as standard. Retrofittable options are available to extend the capabilites of the MXR108A even further, including: - Increase analog bandwidth to 6GHz - Add 1.6Gpts / channel 闁艰鲸绮忛崜鍓ф尒鐎涘窅exible闁艰鲸绮忛崜鐐▕ Memory - Add Real Time Spectrum Analyzer - Extend RF Frequency to 6GHz - Add 50MHz Waveform Generator - Add 16 Digital Channels
