Keysight (Agilent)

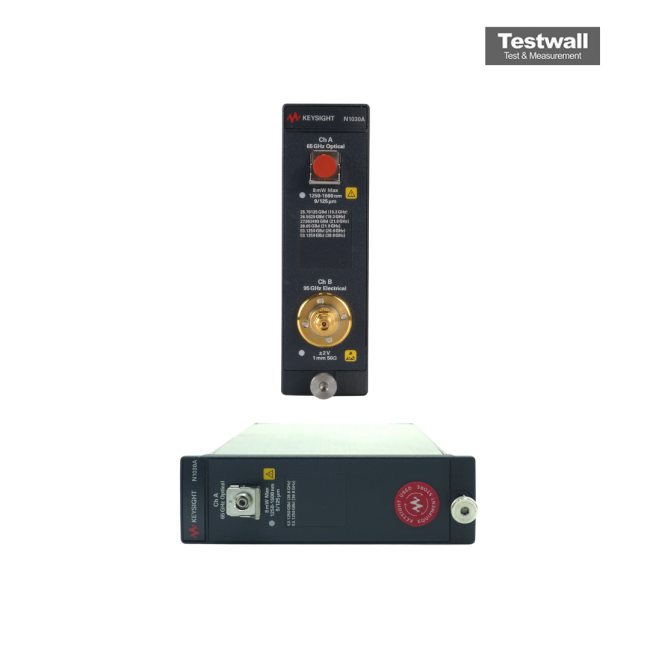

Keysight (Agilent) N1030A
65GHz Optical Module For Dca-x Mainframe
DC to 40 GHz Frequency Range
2.92 mm (K-connector) Connector Type
50 Ohm Impedance
≤ 1.35:1 VSWR
≤ 1.0 dB at 40 GHz Insertion Loss
| Attribute | Value |
|---|---|
| Frequency Range | DC to 40 GHz |
| Connector Type | 2.92 mm (K-connector) |
| Impedance | 50 Ohm |
| VSWR | ≤ 1.35:1 |
| Insertion Loss | ≤ 1.0 dB at 40 GHz |
| Maximum Input Power | 0.5 W (average), 1 W (peak) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Phase Matching | ±5 degrees at 40 GHz |
| Amplitude Matching | ±0.5 dB at 40 GHz |
| Model | N1030A |
|---|
Keysight (Agilent) N1030A 65GHz Optical Module For Dca-x Mainframe Description: One 65 GHz optical channel Optional electrical channel with 33/40/50/70/85/95 GHz BW Low jitter: as low as 90 fs Ideal for analyzing optical signals > 53 GBd Requires DCA-X mainframe Keysight (Agilent) N1030A 65GHz Optical Module For Dca-x Mainframe
