Tektronix TDS2014
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 100 MHz |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | 5.7-inch color LCD |
| Storage | USB flash drive compatible for waveform and screen image storage |
| Input Impedance | 1 MΩ in parallel with 20 pF |
Tektronix TDS2014 Options:
- TDS2014 - Opt. A0 - North America power
- TDS2014 - Opt. A1 - Universal EURO power
- TDS2014 - Opt. A2 - United Kingdom power
- TDS2014 - Opt. A3 - Australia power
- TDS2014 - Opt. A5 - Switzerland power
- TDS2014 - Opt. A99 - No power cord or AC adapter
- TDS2014 - Opt. AC - China power
- TDS2014 - Opt. L0 - English user manual (071-1064-xx)
- TDS2014 - Opt. L1 - French user manual (071-1065-xx)
- TDS2014 - Opt. L2 - Italian user manual (071-1066-xx)
- TDS2014 - Opt. L3 - German user manual (071-1067-xx)
- TDS2014 - Opt. L4 - Spanish user manual (071-1068-xx)
- TDS2014 - Opt. L5 - Japanese user manual (071-1069-xx)
- TDS2014 - Opt. L6 - Portuguese user manual (071-1070-xx)
- TDS2014 - Opt. L7 - Simplified Chinese user manual (071-1071-xx)
- TDS2014 - Opt. L8 - Traditional Chinese user manual (071-1072-xx)
- TDS2014 - Opt. L9 - Korean user manual (071-1073-xx)
- TDS2014 - Opt. LR - Russian user manual (071-1074-xx)
| Model | TDS2014 |
|---|

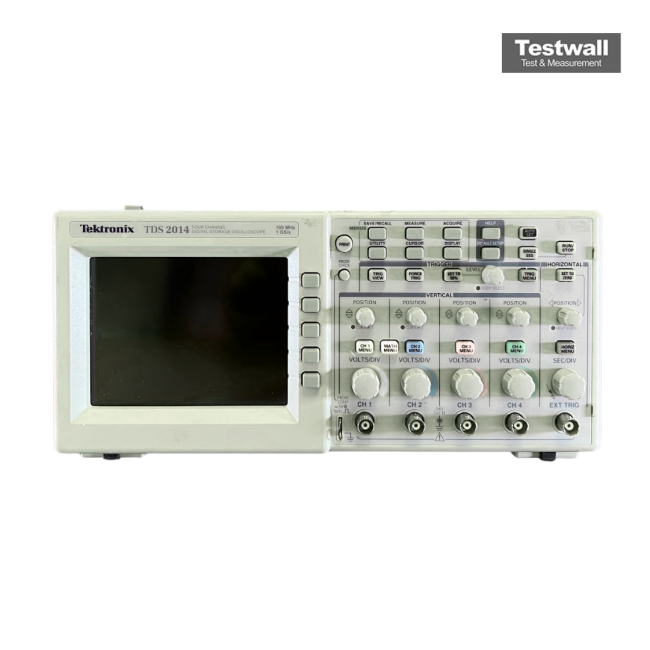

The Tektronix TDS2014 is a robust four-channel digital oscilloscope with a 100 MHz bandwidth and a 1 GS/s real-time sampling rate per channel. It supports simultaneous acquisition on all four channels, enhancing multi-signal analysis. The device features color-coded traces, intuitive Autoset functionality, and on-screen contextual help, enabling faster diagnostics. It also offers FFT analysis and arithmetic operations (addition, subtraction, multiplication), alongside multiple triggering modes including edge, pulse, and video.
Connectivity options include a front-panel USB port and support for optional CompactFlash or GPIB interface via TDS2MEM, allowing seamless data storage and integration into varied setups.
Testwall can supply the used Tektronix TDS2014, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2014.
