Keysight (Agilent)

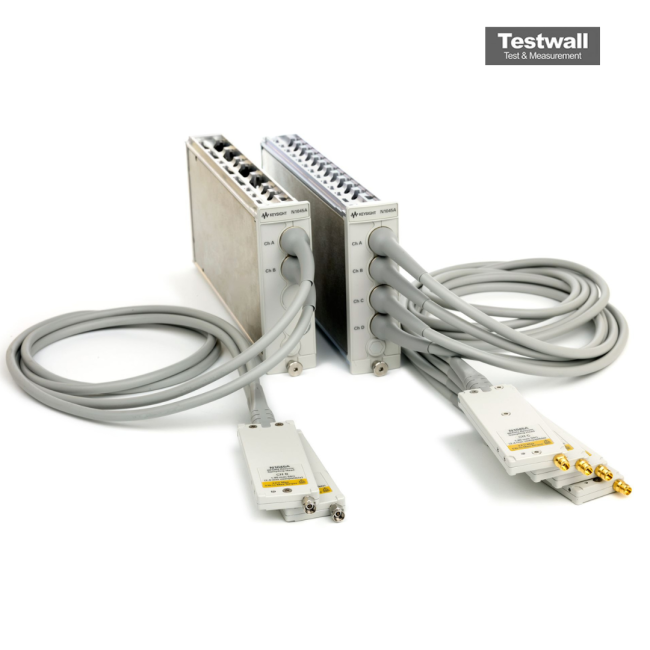

Keysight (Agilent) N1045A
60GHz 2/4 Port,electrical Remote Sampling Head
Up to 50 GHz (with 2-port or 4-port configuration) Bandwidth
2 or 4 ports (configurable) Number of Ports
2.4 mm coaxial connectors Connector Type
Up to 100 Gbps and beyond (supports NRZ and PAM4 signals) Data Rate Support
Less than 8.5 ps (typical) Rise Time
| Attribute | Value |
|---|---|
| Bandwidth | Up to 50 GHz (with 2-port or 4-port configuration) |
| Number of Ports | 2 or 4 ports (configurable) |
| Connector Type | 2.4 mm coaxial connectors |
| Data Rate Support | Up to 100 Gbps and beyond (supports NRZ and PAM4 signals) |
| Rise Time | Less than 8.5 ps (typical) |
| Input Voltage Range | ±2 V differential input range |
| Operating Temperature | 0°C to 40°C |
| Interface/Connectivity | Compatible with Keysight Infiniium oscilloscopes via direct connection |
| Noise Floor | Less than 1.5 mV RMS (typical) |
| Standards Compliance | IEEE 802.3bs, OIF-CEI, 400G Ethernet, and other high-speed serial standards |
| Model | N1045A |
|---|
Keysight (Agilent) N1045A 60GHz 2/4 Port,electrical Remote Sampling Head Description: Keysight (Agilent) N1045A 60GHz 2/4 Port,electrical Remote Sampling Head
