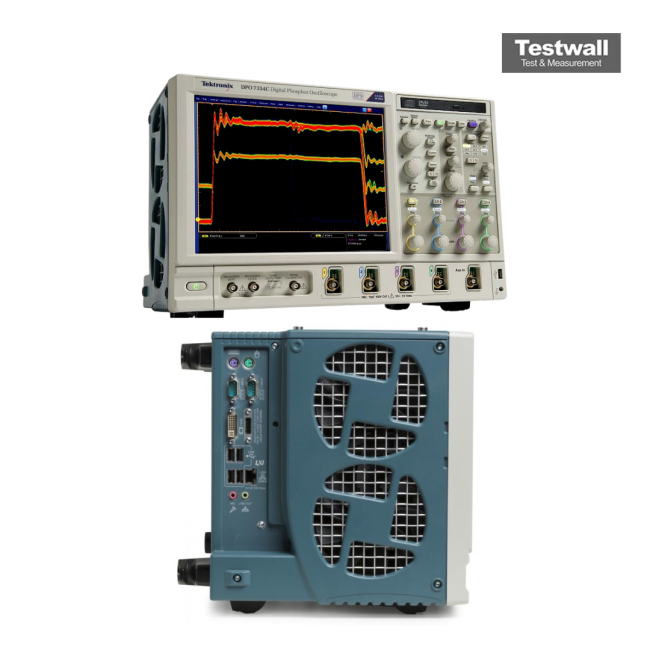

Tektronix DPO7354
| Attribute | Value |
|---|---|
| Bandwidth | 3.5 GHz |
| Sample Rate | 40 GS/s (on 1 or 2 channels), 20 GS/s (on 3 or 4 channels) |
| Number of Channels | 4 |
| Record Length | Up to 250 million points (with optional extended memory) |
| Vertical Resolution | 8-bit (up to 11-bit with Hi Res mode) |
| Rise Time | ≤ 100 ps |
| Input Impedance | 50 Ω or 1 MΩ (selectable) |
| Time Base Accuracy | ±1 ppm |
| Waveform Capture Rate | Up to 250,000 waveforms per second |
| Display | 10.4-inch color LCD touchscreen display |
Tektronix DPO7354 Options:
Options available for the Tektronix DPO7000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO7354 - 2RL - Extended record length
- DPO7354 - 5RL - Extended record length
- DPO7354 - 10RL - Extended record length
- DPO7354 - 20RL - Extended record length
- DPO7354 - SR-DPHY - MIPI D-PHY (DSI-1, CSI-2) serial analysis
- DPO7354 - MTH - Mask testing
- DPO7354 - LT - Limit testing
- DPO7354 - VET - Visual trigger
- DPO7354 - ASM - Advanced search and mark
- DPO7354 - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO7354 - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO7354 - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO7354 - SR-ENET - Ethernet serial analysis (10BASE-T, 100BASE-TX)
- DPO7354 - SR-USB - USB 2.0 serial triggering and analysis
- DPO7354 - DJA - DPOJET advanced jitter and eye diagram analysis
- DPO7354 - DDRA - DDR memory bus analysis (requires DJA)
- DPO7354 - PWR - Power measurement and analysis (DPOPWR)
- DPO7354 - ET3 - Ethernet compliance testing (10/100/1000BASE-T)
The Tektronix DPO7354 is a 3.5 GHz real-time digital phosphor oscilloscope with up to 40 GS/s sample rate on a single channel and 10 GS/s on all four. It features a 500 MS record length, FastFrame™ segmented memory, and a 12.1” touch display. Pinpoint® triggering with over 1400 combinations and MyScope® custom windows boost diagnostic efficiency. Additional capabilities include serial protocol decoding (I2C, SPI, CAN, etc.), jitter and spectral analysis, and support for MIPI®, USB 2.0, and Ethernet compliance testing.
Designed for high-performance debugging and verification, the DPO7354 excels in signal integrity, jitter, and timing analysis. It supports low-speed serial buses and transient investigations.
Testwall can supply the used Tektronix DPO7354, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO7354.
