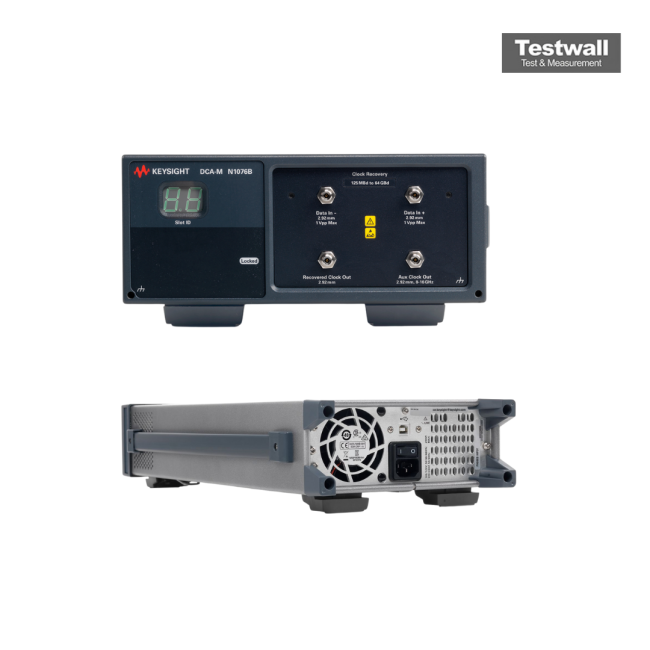

Keysight (Agilent) N1076B
Keysight (Agilent) Electrical Clock Recovery Module for DCA-X Mainframe
Up to 28 Gbaud Data Rate
1250 nm to 1650 nm Optical Wavelength Range
-20 dBm to +10 dBm Optical Input Power Range
30 GHz (typical) Electrical Bandwidth
> 27 dB Optical Return Loss
| Attribute | Value |
|---|---|
| Data Rate | Up to 28 Gbaud |
| Optical Wavelength Range | 1250 nm to 1650 nm |
| Optical Input Power Range | -20 dBm to +10 dBm |
| Electrical Bandwidth | 30 GHz (typical) |
| Optical Return Loss | > 27 dB |
| Connector Type | FC/PC optical input connector |
| Sensitivity | -14 dBm average optical power (typical) |
| Responsivity | 0.7 A/W (typical at 1310 nm and 1550 nm) |
| Operating Temperature | 0°C to 40°C |
| Interface Compatibility | Compatible with Keysight sampling oscilloscopes and Infiniium oscilloscopes |
| Model | N1076B |
|---|
The Keysight (Agilent) N1076B Electrical Clock Recovery Module offers a continuous data rate range from 125 MBd to 64 GBd, supporting both NRZ and PAM4 data formats. It is fully compatible with industry standards for precise clock recovery in high-speed data applications.
This module interfaces seamlessly with DCA-X mainframes or directly to a PC via USB, enabling accurate signal analysis in laboratory and production environments.
Testwall can supply the used Keysight (Agilent) N1076B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N1076B.
