Keysight (Agilent)
Keysight (Agilent) MSOX3014T
100 MHz, 4 Analog Channels, 16 Digital Channels
100 MHz Bandwidth
4 Number of Analog Channels
16 Number of Digital Channels
5 GSa/s Sample Rate
4 Mpts standard (up to 4 Mpts per channel) Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts standard (up to 4 Mpts per channel) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Segmented Memory | Up to 1000 segments |
| Serial Protocol Triggering and Analysis | I2C, SPI, UART/RS232 standard; CAN, LIN, MIL-STD-1553, FlexRay optional |
| Connectivity | USB, LAN (LXI Core), GPIB (optional) |
Keysight (Agilent) MSOX3014T Options:
- MSOX3014T - DSOXT3MSO - MSO upgrade: add 16 digital timing channels
- MSOX3014T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- MSOX3014T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- MSOX3014T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- MSOX3014T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD/CAN-dbc/LIN/LIN symbolic)
- MSOX3014T - DSOX3FLEX - FlexRay serial triggering and analysis
- MSOX3014T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- MSOX3014T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX3014T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- MSOX3014T - DSOXT3DVMCTR - Integrated digital voltmeter and 8-digit counter
- MSOX3014T - DSOX3PWR - Power analysis application
- MSOX3014T - DSOX3MASK - Mask limit testing
- MSOX3014T - DSOX3VID - Enhanced video/TV application package
- MSOX3014T - DSOXEDK - Education and training kit
- MSOX3014T - DSOXT3APPBNDL - SW application bundle license for 3000T X-Series (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3DVMCTR, DSOXEDK)
- MSOX3014T - DSOXLAN - LAN/VGA connection module
- MSOX3014T - DSOXGPIB - GPIB connection module
- MSOX3014T - DSOXT3B1T22 - License only 100MHz to 200MHz upgrade, 2ch
- MSOX3014T - DSOXT3B1T24 - License only 100MHz to 200MHz upgrade, 4ch
- MSOX3014T - DSOXT3B3T52 - License only 350MHz to 500MHz upgrade, 2ch
- MSOX3014T - DSOXT3B3T54 - License only 350MHz to 500MHz upgrade, 4ch
- MSOX3014T - DSOXT3B1T32U - Service center 100MHz to 350MHz upgrade, 2ch
- MSOX3014T - DSOXT3B1T52U - Service center 100MHz to 500MHz upgrade, 2ch
- MSOX3014T - DSOXT3B1T102U - Service center 100MHz to 1GHz upgrade, 2ch
- MSOX3014T - DSOXT3B1T34U - Service center 100MHz to 350MHz upgrade, 4ch
- MSOX3014T - DSOXT3B1T54U - Service center 100MHz to 500MHz upgrade, 4ch
- MSOX3014T - DSOXT3B1T104U - Service center 100MHz to 1GHz upgrade, 4ch
- MSOX3014T - DSOXT3B2T32U - Service center 200MHz to 350MHz upgrade, 2ch
- MSOX3014T - DSOXT3B2T52U - Service center 200MHz to 500MHz upgrade, 2ch
- MSOX3014T - DSOXT3B2T102U - Service center 200MHz to 1GHz upgrade, 2ch
- MSOX3014T - DSOXT3B2T34U - Service center 200MHz to 350MHz upgrade, 4ch
- MSOX3014T - DSOXT3B2T54U - Service center 200MHz to 500MHz upgrade, 4ch
- MSOX3014T - DSOXT3B2T104U - Service center 200MHz to 1GHz upgrade, 4ch
- MSOX3014T - DSOXT3B3T102U - Service center 350MHz to 1GHz upgrade, 2ch
- MSOX3014T - DSOXT3B3T104U - Service center 350MHz to 1GHz upgrade, 4ch
- MSOX3014T - DSOXT3B5T102U - Service center 500MHz to 1GHz upgrade, 2ch
- MSOX3014T - DSOXT3B5T104U - Service center 500MHz to 1GHz upgrade, 4ch
| Model | MSOX3014T |
|---|

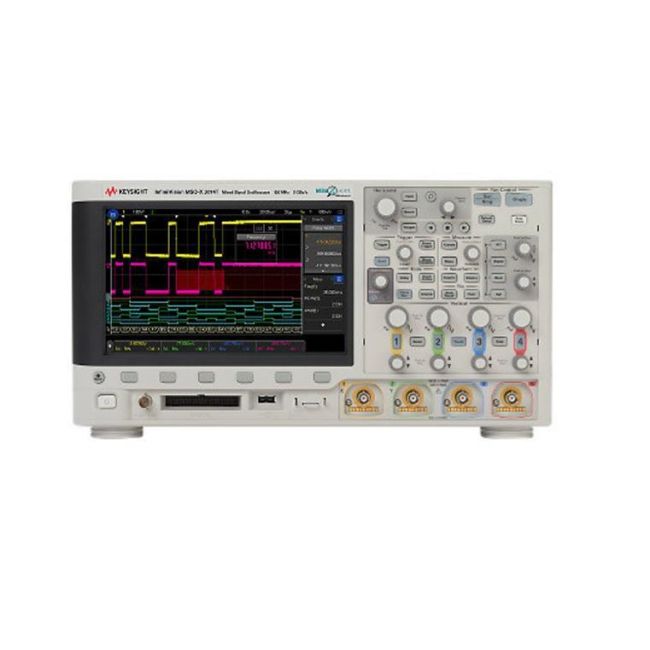

The Keysight (Agilent) MSOX3014T is a 100 MHz mixed signal oscilloscope with 4 analog and 16 digital channels, delivering 5 million waveforms per second. It features an 8.5-inch capacitive touchscreen with gesture support, integrated logic analyzer, and optional WaveGen function generator with Bode plot capability.
Ideal for embedded development, it offers high-speed debugging, serial bus decoding, and flexible signal generation with user-friendly controls.
Testwall can supply the used Keysight (Agilent) MSOX3014T, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX3014T.
