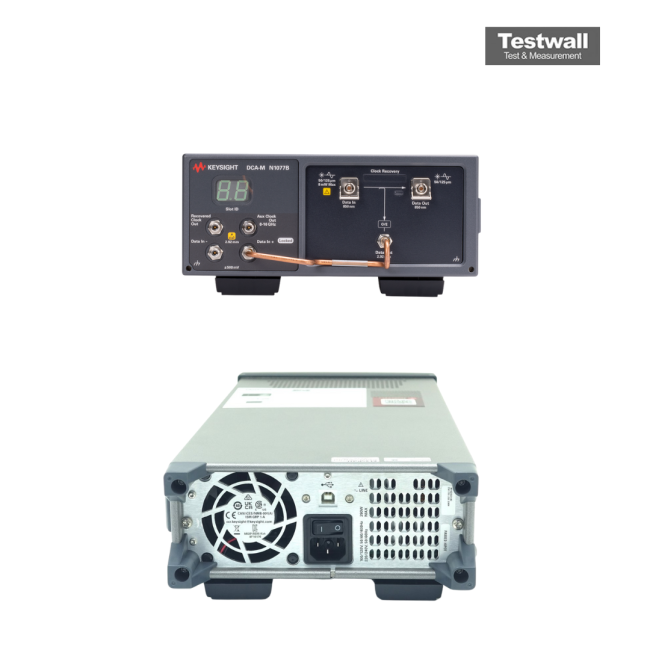

Keysight (Agilent) N1077B
Optical / Eectrical Clock Recovery Module for DCA-X Mainframe
Clock Data Recovery (CDR) / Trigger Module Instrument Type
50 Mb/s to 32.1 Gb/s Data Rate Range
OTU4, 100GbE, CEI-28G, SONET/SDH, Fibre Channel, PCIe Gen 1/2/3 Supported Standards
100 mVpp to 1000 mVpp Input Voltage Range
Adjustable from 10 kHz to 20 MHz Loop Bandwidth
| Attribute | Value |
|---|---|
| Instrument Type | Clock Data Recovery (CDR) / Trigger Module |
| Data Rate Range | 50 Mb/s to 32.1 Gb/s |
| Supported Standards | OTU4, 100GbE, CEI-28G, SONET/SDH, Fibre Channel, PCIe Gen 1/2/3 |
| Input Voltage Range | 100 mVpp to 1000 mVpp |
| Loop Bandwidth | Adjustable from 10 kHz to 20 MHz |
| Output Frequency Range | 50 MHz to 16.05 GHz (half-rate clock output) |
| Compatibility | Designed for use with Keysight 86100D DCA-X Wide-Bandwidth Oscilloscope |
| Trigger Output | Provides recovered clock trigger signal for oscilloscope synchronization |
| Connectivity | SMA connectors for input and output signal connections |
| Form Factor | Plug-in module for 86100D mainframe |
| Model | N1077B |
|---|
Keysight (Agilent) N1077B Optical / Eectrical Clock Recovery Module for DCA-X Mainframe Description: 125 MBd to 64 GBd data rate range (continuous) Compatible data signals: NRZ and PAM4 Standards-compliant clock recovery Connects to a DCA-X mainframe or PC USB interface Keysight (Agilent) N1077B Optical / Eectrical Clock Recovery Module for DCA-X Mainframe
