Teledyne LeCroy

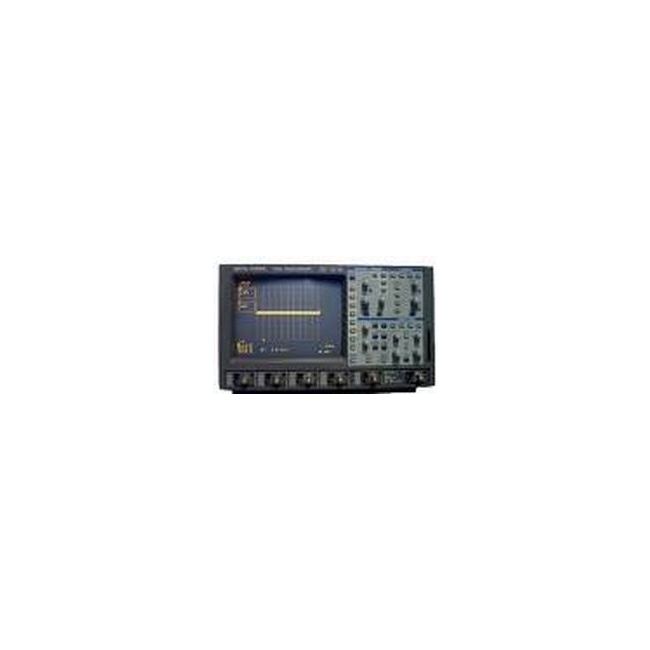

LeCroy 9384TM
1 GHz Digital Oscilloscope.
1 GHz Bandwidth
4 Channels
4 GS/s Sample Rate
2 Mpts per channel Memory Depth
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Channels | 4 |
| Sample Rate | 4 GS/s |
| Memory Depth | 2 Mpts per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 1 V/div |
| Timebase Range | 500 ps/div to 1000 s/div |
| Display | 10.4-inch color LCD touchscreen |
| Input Impedance | 1 MΩ or 50 Ω |
| Trigger Types | Edge, Pattern, State, Qualified, UART, SPI, I2C, and more |
LeCroy 9384TM Options:
- 9384TM - WP01 - Advanced Math Package: Summed and Continuous Averaging, Waveform Math Functions, Extrema and Enhanced Resolution Modes
- 9384TM - WP02 - Spectral Analysis Package: Comprehensive Spectral Analysis with windowing functions and frequency domain averaging
- 9384TM - WP03 - Parameter Analysis Package: Extensive parameter analysis with live histogram displays and statistical analysis capabilities
- 9384TM - PP005 - X10 Probe (10 M Ohm // 11 pF), supplied standard per channel
- 9384TM - PP094 - Paired + PP094 input option enabling 4 GS/s sample rate and 2M memory per channel
| Model | 9384TM |
|---|
The used LeCroy 9384TM is a technology-modified version of the 9384L, designed for extended-temporal monitoring or mixed-signal applications. It maintains flagship sampling and triggering capabilities with potential enhancements in timebase flexibility.
Ideal for engineers requiring advanced temporal resolution, the LeCroy 9384TM delivers powerful signal analysis with tooling enabled for mixed-signal triggers.
Testwall can supply the used LeCroy 9384TM, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy 9384TM.
