Keysight (Agilent)

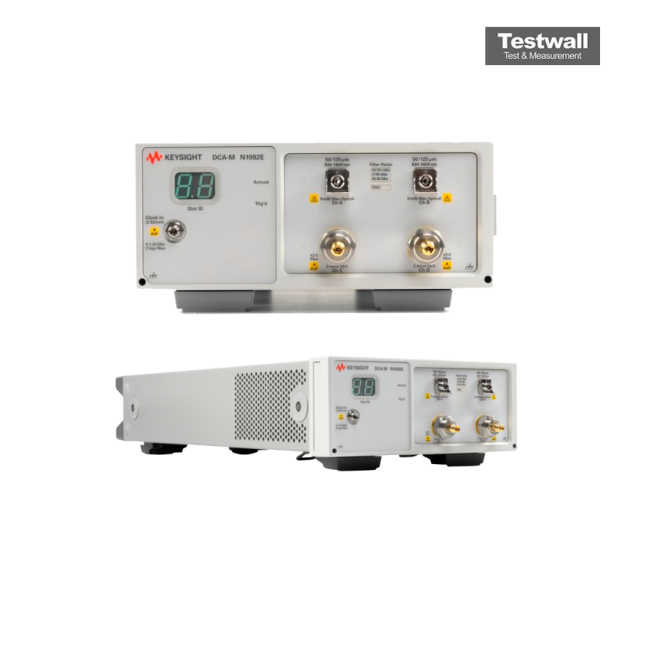

Keysight (Agilent) N1092E
1.25Gb/s to 11.3Gb/s Dual Channel Optical Module
4 Number of Optical Inputs
1260 nm to 1640 nm Wavelength Range
Up to 500 fs RMS jitter measurement floor Timing Resolution
Up to 64 Gbaud (PAM4) / 32 Gbaud (NRZ) Maximum Data Rate
Up to 70 GHz Optical Bandwidth
| Attribute | Value |
|---|---|
| Number of Optical Inputs | 4 |
| Wavelength Range | 1260 nm to 1640 nm |
| Timing Resolution | Up to 500 fs RMS jitter measurement floor |
| Maximum Data Rate | Up to 64 Gbaud (PAM4) / 32 Gbaud (NRZ) |
| Optical Bandwidth | Up to 70 GHz |
| Sampling Rate | Up to 256 GSa/s equivalent-time sampling |
| Display / Interface | 12.1-inch color LCD touchscreen display |
| Connectivity | USB, LAN (LXI compliant), GPIB (optional) |
| Operating Temperature | 0 °C to 40 °C |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Model | N1092E |
|---|
Keysight (Agilent) N1092E 1.25Gb/s to 11.3Gb/s Dual Channel Optical Module Description: >40 GHz optical (option 40A), 50 GHz electrical fast throughput with high 250 kHz sample rate FC / PC and 2.4 mm input type small footprint USB interface (for connection to DCA-X mainframe or PC Keysight (Agilent) N1092E 1.25Gb/s to 11.3Gb/s Dual Channel Optical Module
