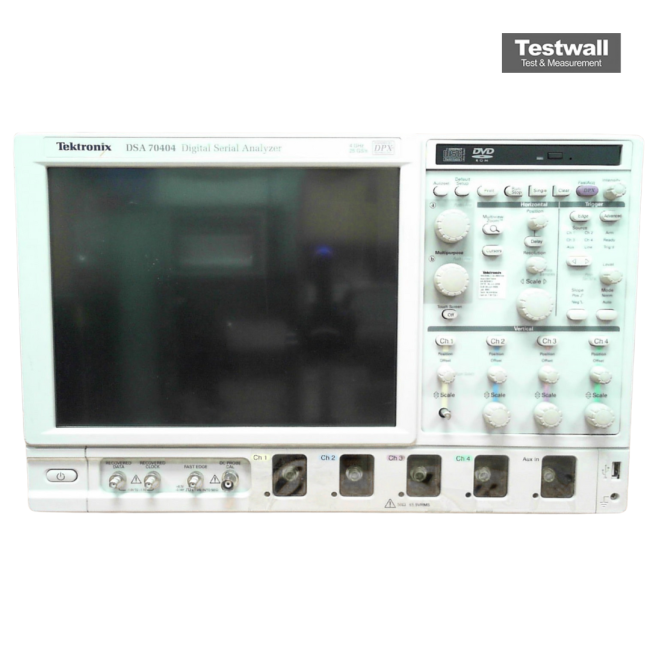

Tektronix DSA70404
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Sample Rate | 25 GS/s on all 4 channels simultaneously |
| Number of Channels | 4 |
| Record Length | Up to 250 Megapoints per channel |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 87.5 ps |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Time Base Accuracy | ±1 ppm |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 15.3-inch XGA color LCD display |
Tektronix DSA70404 Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DSA70404 - 2XL - Extended record length
- DSA70404 - 5XL - Extended record length
- DSA70404 - 10XL - Extended record length
- DSA70404 - 20XL - Extended record length
- DSA70404 - 50XL - Extended record length
- DSA70404 - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DSA70404 - DJAN - DPOJET jitter and noise analysis
- DSA70404 - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DSA70404 - DDRA - DDR memory bus analysis
- DSA70404 - ST6G - 6.25 Gb/s serial pattern trigger
- DSA70404 - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DSA70404 - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DSA70404 - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSA70404 - SR-USB - USB 2.0 serial triggering and analysis
- DSA70404 - SR-PCIE - PCI Express serial analysis
- DSA70404 - SR-810B - 8b/10b serial analysis
- DSA70404 - MTH - Mask testing
- DSA70404 - LT - Limit testing
- DSA70404 - VET - Visual trigger
- DSA70404 - ASM - Advanced search and mark
The Tektronix DSA70404 Digital Serial Analyzer offers a 4 GHz bandwidth and 25 GS/s sampling rate across four channels, enabling precise signal integrity analysis and high-speed serial data testing. It supports deep memory of up to 100 M points and fast waveform acquisition with over 300,000 wfms/sec using FastAcq technology.
Ideal for compliance testing and debugging of protocols like PCIe, USB, SATA, and HDMI, it features 8b/10b decoding, jitter analysis, and eye diagram tools for robust diagnostics.
Testwall can supply the used Tektronix DSA70404, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA70404
