Keysight (Agilent)

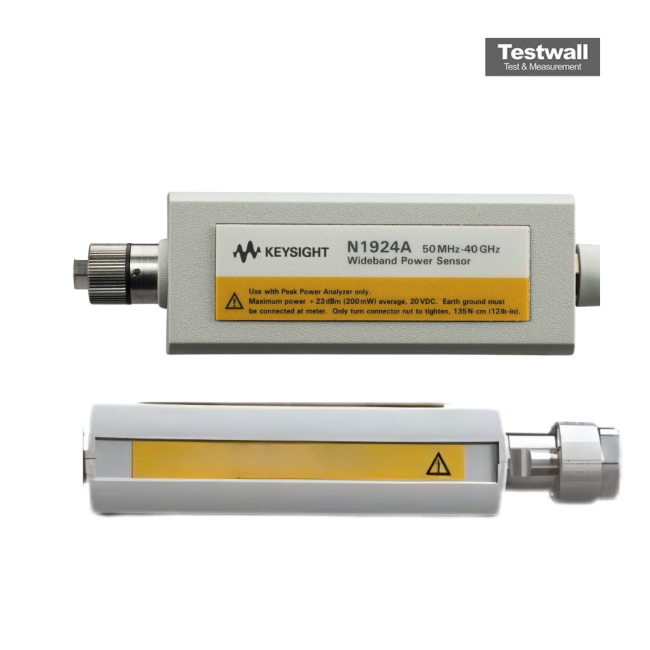

Keysight (Agilent) N1924A
Wideband Peak Power Sensor, 50 MHz to 40 GHz
50 MHz to 18 GHz Frequency Range
-70 dBm to +20 dBm Power Range
Wideband Power Sensor (Diode-based) Sensor Type
2.92 mm (K-type) male Connector Type
Up to 100,000 readings per second (buffered mode) Measurement Speed
| Attribute | Value |
|---|---|
| Frequency Range | 50 MHz to 18 GHz |
| Power Range | -70 dBm to +20 dBm |
| Sensor Type | Wideband Power Sensor (Diode-based) |
| Connector Type | 2.92 mm (K-type) male |
| Measurement Speed | Up to 100,000 readings per second (buffered mode) |
| Dynamic Range | 90 dB |
| VSWR (Maximum) | 1.20 (50 MHz to 18 GHz) |
| Interface | USB (compatible with Keysight power meters and PC-based software) |
| Operating Temperature | 0°C to 55°C |
| Calibration Factor Frequency Points | Up to 80 calibration factor frequency points stored internally via EEPROM |
Keysight (Agilent) N1924A Options:
- N1924A - 105 - Fixed cable option length, 1.5 m (5 ft)
- N1924A - 106 - Fixed cable option length, 3 m (10 ft)
- N1924A - 1A7 - Certificate of compliance calibration - ISO 17025 with test data; printed
- N1924A - A6J - Certificate of compliance calibration - ANSI Z540 with test data; printed
- N1924A - ABJ - Japan, Japanese user guide, printed
- N1924A - 0B1 - English language user guide, printed
- N1924A - 0BN - English language service guide, printed
| Model | N1924A |
|---|
RENT KEYSIGHT N1924A (Agilent) Power Sensor (call for availability)
The Keysight N1924A Wideband Power Sensor provides internal zero and calibration by uniquely integrating a DC reference source and switching circuits into the power sensor. This feature eliminates the multiple connections associated with using an external calibration source, thus minimizing connector wear, test-time and measurement uncertainty.
Features and Specifications of the Keysight N1924A (Agilent) Power Sensor include:
- Zero and calibrate while connected to the DUT
- Wide Dynamic Range for peak power measurements: -35 dBm to +20 dBm
- Calibration factors, linearity, temperature and bandwidth correction data stored in EEPROM
- Precision N-type connector as standard
- Sensor Cable:
- Fixed to sensor
- Available cable lengths:
- 1.5m (5ft)
- 3m (10ft)
