Keysight (Agilent)

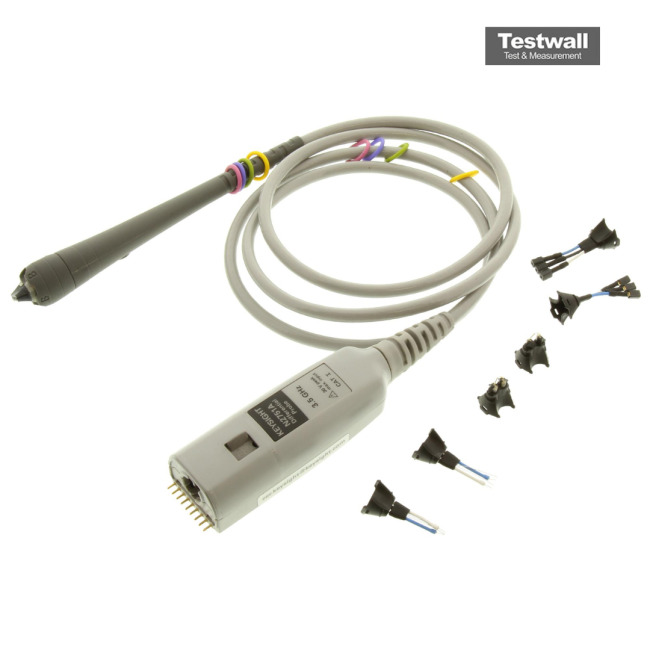

Keysight (Agilent) N2751A
3.5GHz Active Differential Probe
InfiniiMode Differential Active Probe Adapter Product Family
Keysight InfiniiVision and Infiniium Series Oscilloscopes Compatible Oscilloscopes
Converts single-ended active probes into differential active probes Function
2 (uses two single-ended active probes simultaneously) Number of Probe Inputs
N2771A, N2772A, and other Keysight single-ended active probes Compatible Probes
| Attribute | Value |
|---|---|
| Product Family | InfiniiMode Differential Active Probe Adapter |
| Compatible Oscilloscopes | Keysight InfiniiVision and Infiniium Series Oscilloscopes |
| Function | Converts single-ended active probes into differential active probes |
| Number of Probe Inputs | 2 (uses two single-ended active probes simultaneously) |
| Compatible Probes | N2771A, N2772A, and other Keysight single-ended active probes |
| Probe Interface | AutoProbe Interface compatible |
| Operating Mode | Differential measurement mode via software-based subtraction (A - B) |
| Power Supply | Powered through oscilloscope AutoProbe interface (no external power required) |
| Form Factor | Compact adapter module designed for bench-top use |
| Primary Application | High-voltage differential signal measurements, power electronics, motor drives, and switching power supplies |
| Model | N2751A |
|---|
Keysight (Agilent) N2751A 3.5GHz Active Differential Probe Description: Keysight (Agilent) N2751A 3.5GHz Active Differential Probe
