Tektronix A622
| Attribute | Value |
|---|---|
| Measurement Type | AC/DC Current |
| Current Range | 100 A peak AC/DC |
| Frequency Bandwidth | DC to 100 kHz |
| Output Sensitivity | 100 mV/A |
| Maximum Conductor Size | 10 mm diameter |
| Output Connector | BNC |
| Power Supply | 9V battery (included) |
| Operating Temperature | 0°C to +50°C |
| Safety Rating | CAT III 300V |
| Cable Length | 2 m (6.5 ft) |
| Model | A622 |
|---|

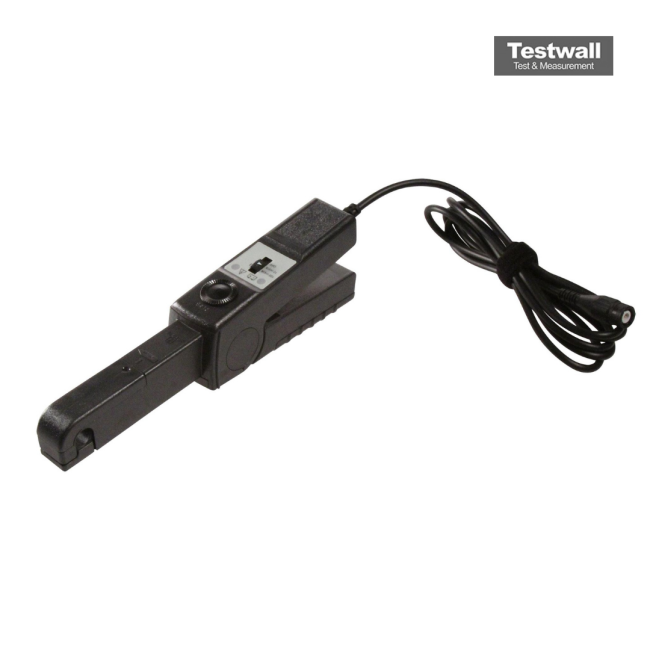

The Tektronix A622 is a 100A AC/DC current probe designed for use with Tektronix oscilloscopes and digital multimeters. Utilizing Hall effect technology, it delivers voltage output via a BNC connector, compatible with TPS2000, TDS1000B, TDS2000C, TDS3000C oscilloscopes and DMM4020, DMM4040, DMM4050 multimeters. Features include a 50mA–100A range, 10mV/A and 100mV/A output, DC–100kHz bandwidth, and 11.8mm conductor diameter support.
Suitable for electrical diagnostics and accurate current measurements, it supports high-voltage applications up to 600V CAT III with reliable certifications: UL3111-2-032, CSA1010.2.032, EN61010-2-032, IEC61010-2-032.
Testwall can supply the used Tektronix A622, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix A622.
