Keysight (Agilent) N2797A
| Attribute | Value |
|---|---|
| Product Family | InfiniiMode Differential Active Probe |
| Bandwidth | 1.5 GHz |
| Input Voltage Range | ±8 V differential, ±4 V single-ended |
| Attenuation Ratio | 10:1 |
| Input Impedance | 1 MΩ || 0.7 pF differential |
| CMRR (Common Mode Rejection Ratio) | >50 dB at 1 MHz |
| Noise Floor | 350 µV RMS typical |
| Compatible Oscilloscopes | Keysight InfiniiVision and Infiniium series oscilloscopes with AutoProbe interface |
| Probe Head Interface | AutoProbe (self-identifying, automatic scaling) |
| Operating Temperature Range | 0°C to 55°C |
Keysight (Agilent) N2797A Options:
- N2797A - N2798A - Accessory kit for N2797A
- N2797A - N4839A - Dual lead socketed adapter, 6 cm (1.4 GHz, not included in the N2795A/96A standard probe kit)
- N2797A - N4840A - Dual lead solder-in adapter, 5 cm (1.4 GHz, not included in the standard probe kit)
- N2797A - N4841A - Dual lead socketed adapter, 9 cm (1 GHz)
- N2797A - N4842A - Dual pin PCB header (not included in the standard probe kit)
- N2797A - N4843A - Solderable tips, qty 10
- N2797A - N4844A - Right angle ground lead, 5 cm
- N2797A - N4845A - Ground blade
- N2797A - N4846A - Offset ground
| Model | N2797A |
|---|
Keysight (Agilent) N2797A Extreme Temperature Active Probe

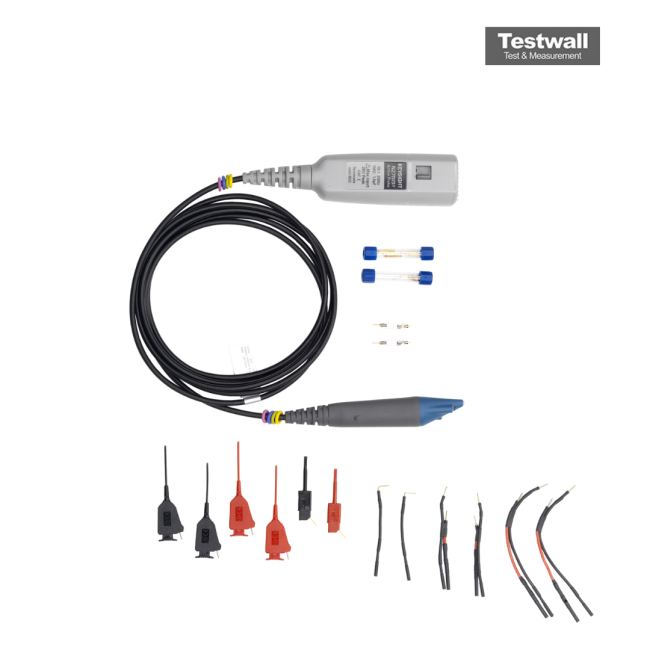

Testing devices over extreme temperature ranges is quite common these days. The Keysight N2797A single-ended active probe is the industry's first low-cost high input impedance active probe with rugged probe tips for environmental chamber testing of ICs and devices. It gives the ability to probe signals at drastic temperature swings ranging from €“40 to +85 °C. The probe provides 1.5 GHz of bandwidth and a 2 m long cable. The N2797A is equipped with a white LED headlight to illuminate the circuit under test for better visibility while hand browsing. The probe is powered directly by the InfiniiVision and Infiniium AutoProbe interface, eliminating the need for an additional power supply.
Features of the Keysight (Agilent) N2797A Extreme Temperature Active Probe Include:
- Wide operating temperature range of €“40 to +85 °C for extreme temperature environmental chamber testing
- 1.5 GHz bandwidth (-3 dB)
- High resistance (1M?) and low capacitance (1 pF) input for low loading
- Wide input dynamic range ( ±8V) and offset range ( ±12V)
- Built-in headlight for better visibility while hand browsing
