Keysight (Agilent) N2802A
| Manufacturer | Keysight (Agilent) |
| Model | N2802A |
| Product | InfiniiMax III Series Probe Amplifier, 25 GHz |
| Type | Used |

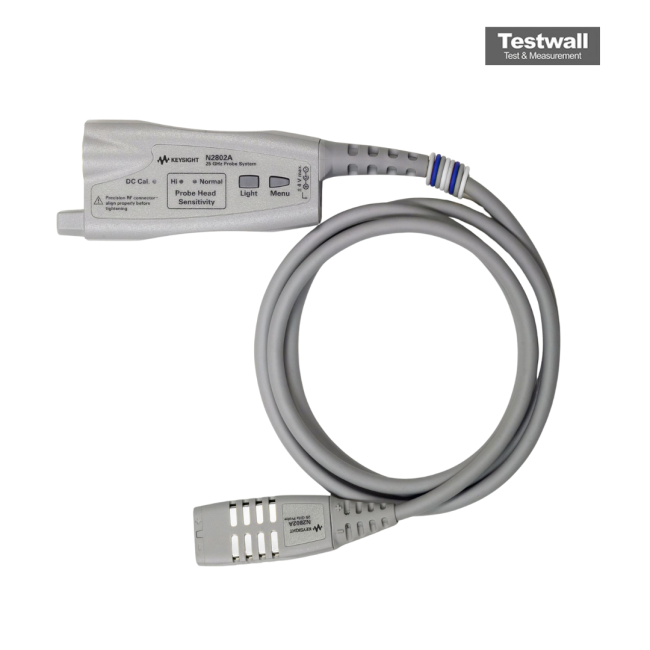

KEYSIGHT N2802A InfiniiMax III Probe Amplifier
The Keysight N2802A InfiniiMax III Probe Amplifier offers you the highest performance available for measuring differential and single-ended signals, with flexible connectivity solutions for today's high-density ICs and circuit boards. A proprietary 200 GHz fT InP (indium phosphide) IC process with backside ground vias and novel thick film technology is utilized to accommodate your highest performance needs and is unmatched by any product in the market. The Keysight N2802A InfiniiMax III provides the highest bandwidth and incredibly low loading to allow for a new level of signal fidelity and accuracy.
The Keysight N2802A InfiniiMax III Probe Amplifier contains its unique S-parameters, and this frequency response data is used with the S-parameters of the various probe heads to further flatten the probe's magnitude and phase response for accuracy. The ability to correct a specific probe amplifier's response results in a more accurate probe correction, which yields a more accurate measurement. The InfiniiMax III system offers the world's first fully upgradable probe amplifier, knowing that in the future, you can upgrade the amplifier to higher bandwidths (30 GHz) at a fraction of the cost of a new probe amplifier.
Specifications for the KEYSIGHT N2802A InfiniiMax III Probe Amplifier Include:
| Bandwidth | 25 GHz, Tr = 17.4 psec |
| DC Attenuation Ratio | 6:1 (3:1 with 200 Ω ZIF tip) |
| Offset Range | ±16 V when probing a single-ended signal |
| Input Capacitance | C diff = 32 fF, C se = 48 fF (with ZIF probe head) |
