Keysight (Agilent)

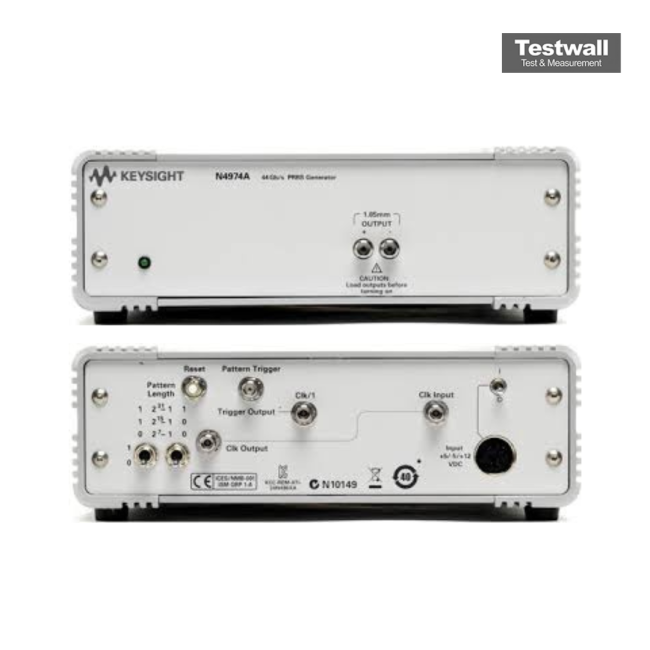

Keysight (Agilent) N4974A
Prbs Generator 22 To 44Gb/s
Up to 28.4 Gb/s Output Data Rate
2^31-1 PRBS Pattern Length
0.25 V to 2.0 V (single-ended, into 50 Ω) Output Amplitude
<15 ps (20%–80%) Rise/Fall Time
<500 fs RMS (intrinsic) Jitter (RMS)
| Attribute | Value |
|---|---|
| Output Data Rate | Up to 28.4 Gb/s |
| Pattern Length | 2^31-1 PRBS |
| Output Amplitude | 0.25 V to 2.0 V (single-ended, into 50 Ω) |
| Rise/Fall Time | <15 ps (20%–80%) |
| Jitter (RMS) | <500 fs RMS (intrinsic) |
| Output Connector Type | 2.92 mm (K-connector) |
| Operating Frequency Range | 1 Gb/s to 28.4 Gb/s |
| Clock Input | External reference clock input supported |
| Interface | USB and LAN (LXI compliant) |
| Operating Temperature | 0°C to 55°C |
| Model | N4974A |
|---|
Keysight (Agilent) N4974A Prbs Generator 22 To 44Gb/s Description: Keysight (Agilent) N4974A Prbs Generator 22 To 44Gb/s
