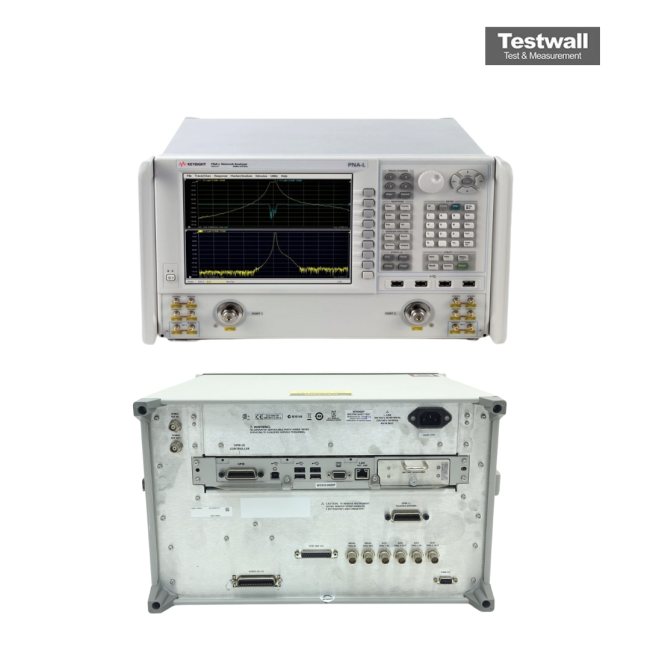

Keysight (Agilent) N5234A
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 43.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 122 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Measurement Speed | Up to 42 µs per point (fast sweep mode) |
| Connector Type | 2.4 mm (female) on all test ports |
| Trace Noise | 0.004 dB RMS typical |
| System Interface | GPIB, USB, LAN (LXI Class C compliant) |
| Display | 10.4-inch XGA color LCD touchscreen |
| Operating System | Windows XP Professional (embedded) |
Keysight (Agilent) N5234A Options:
- N5234A - 200 - 2-port base model with standard test set
- N5234A - 216 - To base model, adds front-panel jumpers and source attenuators (extended power range)
| Model | N5234A |
|---|
The Keysight (Agilent) N5234A PNA-L Vector Network Analyzer offers precise S-parameter measurements with a frequency range of 10 MHz to 43.5 GHz, 2 ports with a built-in source, and 110 dB dynamic range. It supports 100,001 points and 200 channels, ensuring robust performance for testing amplifiers and frequency converters.
Ideal for S-parameters, gain compression, conversion gain/loss, and signal integrity testing, it also provides high output power and a low noise floor of -110 dBm at 10 Hz IF bandwidth.
Testwall can supply the used Keysight (Agilent) N5234A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5234A.
