Keysight (Agilent)

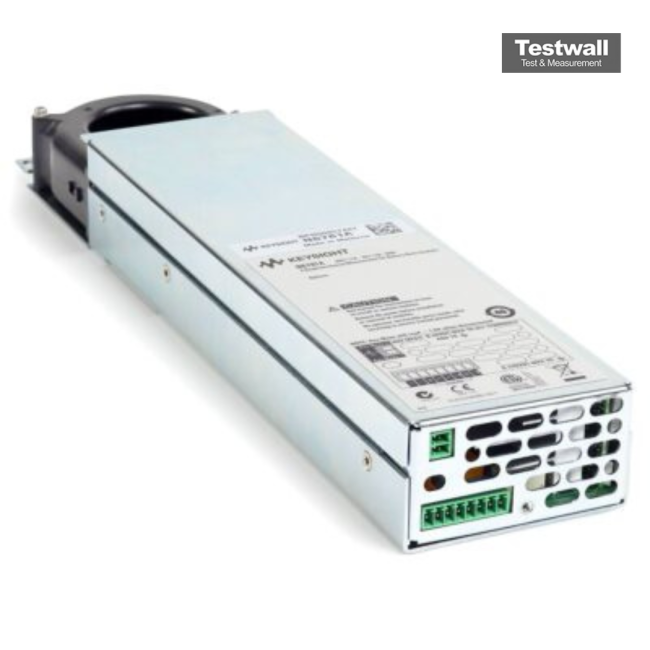

Keysight (Agilent) N6783A
2-quadrant DC Power Module 24W
0 to +8 V (positive output), 0 to -3 V (negative output) Output Voltage Range
0 to 3 A (positive output), 0 to -3 A (negative output) Output Current Range
24 W maximum Output Power
2 (dual output: positive and negative) Number of Outputs
Single-wide plug-in module for Keysight N6700 series mainframes Form Factor
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to +8 V (positive output), 0 to -3 V (negative output) |
| Output Current Range | 0 to 3 A (positive output), 0 to -3 A (negative output) |
| Output Power | 24 W maximum |
| Number of Outputs | 2 (dual output: positive and negative) |
| Form Factor | Single-wide plug-in module for Keysight N6700 series mainframes |
| Compatible Mainframes | Keysight N6700B, N6701A, N6702A modular power system mainframes |
| Voltage Programming Accuracy | 0.04% + 5 mV |
| Current Programming Accuracy | 0.1% + 3 mA |
| Primary Application | Powering mobile communications devices (RF power amplifiers, dual-supply circuits) |
| Interface/Control | Controlled via N6700 mainframe interfaces: GPIB, LAN (LXI), USB |
| Model | N6783A |
|---|
Keysight (Agilent) N6783A 2-quadrant DC Power Module 24W Description: Voltage: 2-quadrant 8 V, -2A to +3A, 24 W Two-quadrant operation Voltage Measurement Accuracy: 0.05% + 5 mV Current Measurement Accuracy: 0.1% + 600 闁告ぜ鍨籄 (High Range) Current Measurement Accuracy: (= 150 mA): 0.1% + 75 闁告ぜ鍨籄 (Low Range) Keysight (Agilent) N6783A 2-quadrant DC Power Module 24W
