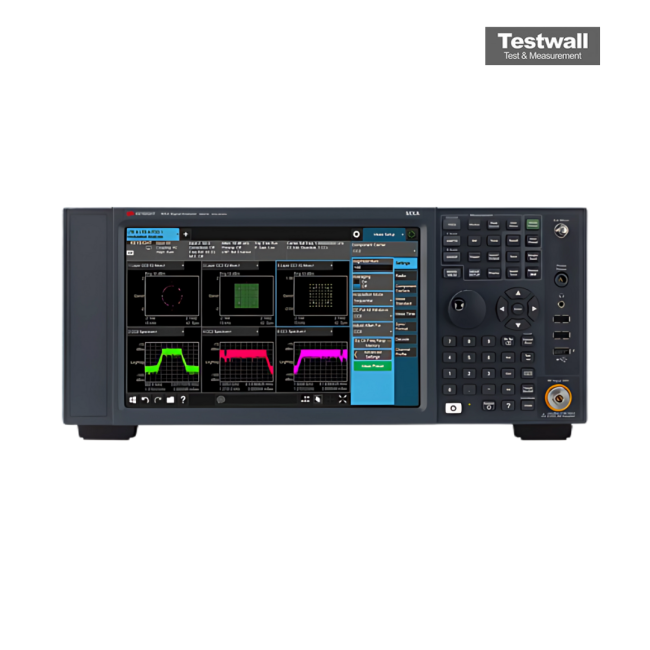

Keysight (Agilent) N9021B
10Hz to 50GHz MXA Signal Analyzer
10 Hz to 3.6 GHz (standard); upgradeable to 6 GHz, 13.6 GHz, 26.5 GHz, or 44 GHz Frequency Range
-163 dBm/Hz (typical, with preamplifier enabled, at 1 GHz) Displayed Average Noise Level (DANL)
-106 dBc/Hz at 10 kHz offset from 1 GHz carrier (typical) Phase Noise
±0.19 dB (total amplitude accuracy, typical, at 1 GHz) Amplitude Accuracy
Up to 97 dB (third-order intermodulation dynamic range, typical) Dynamic Range
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 3.6 GHz (standard); upgradeable to 6 GHz, 13.6 GHz, 26.5 GHz, or 44 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical, with preamplifier enabled, at 1 GHz) |
| Phase Noise | -106 dBc/Hz at 10 kHz offset from 1 GHz carrier (typical) |
| Amplitude Accuracy | ±0.19 dB (total amplitude accuracy, typical, at 1 GHz) |
| Dynamic Range | Up to 97 dB (third-order intermodulation dynamic range, typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 8 MHz (in 10% steps); FFT-based analysis available |
| Input Impedance | 50 Ω (standard); 75 Ω optional |
| Maximum Input Power | +30 dBm (1 W) continuous, DC coupled |
| Analysis Bandwidth | Up to 160 MHz (with hardware and software options enabled) |
| Display | 12.1-inch XGA color display (1024 x 768 resolution), touchscreen capable |
Keysight (Agilent) N9021B Options:
- N9021B - 508 - Frequency range 10 Hz to 8.4 GHz
- N9021B - 513 - Frequency range 10 Hz to 13.6 GHz
- N9021B - 526 - Frequency range 10 Hz to 26.5 GHz
- N9021B - 532 - Frequency range 10 Hz to 32 GHz
- N9021B - 544 - Frequency range 10 Hz to 44 GHz
- N9021B - 550 - Frequency range 10 Hz to 50 GHz
- N9021B - PFR - Precision frequency reference
- N9021B - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9021B - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9021B - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9021B - P32 - Preamplifier, 100 kHz to 32 GHz
- N9021B - P44 - Preamplifier, 100 kHz to 44 GHz
- N9021B - P50 - Preamplifier, 100 kHz to 50 GHz
- N9021B - EA3 - Electronic attenuator, 10 Hz to 3.6 GHz
- N9021B - B2X - 255 MHz analysis bandwidth
- N9021B - B5X - 510 MHz analysis bandwidth
- N9021B - RBE - Extended RBW option (for use with B2X/B5X)
- N9021B - NF2 - Noise floor extension
- N9021B - EXM - External mixing
- N9021B - CR3 - 2nd IF output
- N9021B - CRP - Programmable IF output
- N9021B - RT1 - Real-time spectrum analyzer, option RT1
- N9021B - RT2 - Real-time spectrum analyzer, option RT2
- N9021B - DUA - Dual 255 MHz real-time analysis at same center frequency, requires Option B5X
- N9021B - DP4 - 4 GB (or 8 GB) total waveform capture memory
- N9021B - PC6 - CPU option PC6
- N9021B - PC6S - CPU option PC6S
- N9021B - PC8 - CPU option PC8
- N9021B - PCA - CPU option PCA
- N9021B - YAS - Analog output (used by Option YAS and N9063EM0E analog demodulation measurement application)
- N9021B - B25 - 25 MHz analysis bandwidth (licensed as B25)
- N9021B - B40 - 40 MHz analysis bandwidth (licensed as B40)
| Model | N9021B |
|---|
Keysight (Agilent) N9021B 10Hz to 50GHz MXA Signal Analyzer Description: Frequency Range: 10 Hz to 50 GHz Maximum Analysis Bandwidth: 510 MHz DANL @1 GHz: -172 dBm Leverage built-in measurement expertise to quickly understand signals and device performance The optimum choice in wireless for 5G and other new-generation devices Keysight (Agilent) N9021B 10Hz to 50GHz MXA Signal Analyzer
