Keysight (Agilent)

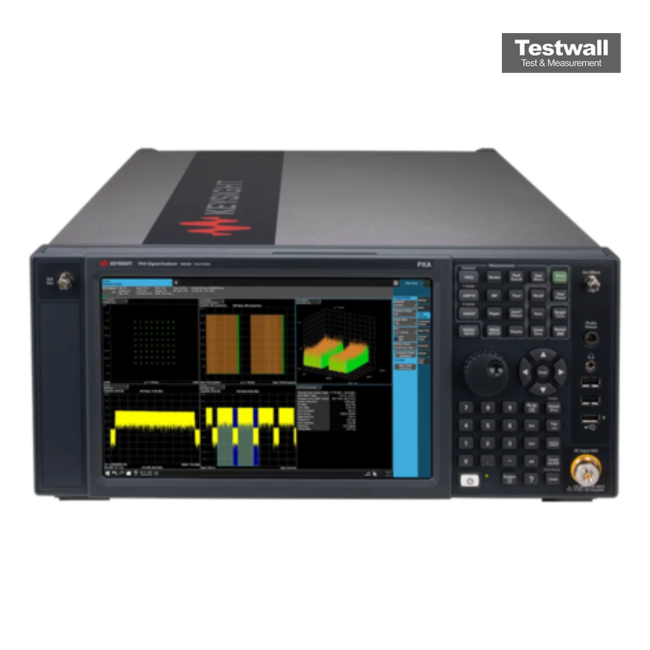

Keysight (Agilent) N9032B
2Hz to 26.5GHz PXA Signal Analyzer
3 Hz to 50 GHz Frequency Range
-163 dBm/Hz (typical, preamp on) Displayed Average Noise Level (DANL)
-130 dBc/Hz at 1 GHz carrier, 10 kHz offset (typical) Phase Noise
+20 dBm (typical) Third-Order Intercept (TOI)
±0.19 dB (typical) Amplitude Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 3 Hz to 50 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical, preamp on) |
| Phase Noise | -130 dBc/Hz at 1 GHz carrier, 10 kHz offset (typical) |
| Third-Order Intercept (TOI) | +20 dBm (typical) |
| Amplitude Accuracy | ±0.19 dB (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Input Attenuator Range | 0 to 70 dB |
| Maximum Input Power | +30 dBm (1 W) |
| Dynamic Range | Up to 97 dB (typical spurious-free dynamic range) |
| Measurement Applications | Supports EMI, noise figure, phase noise, analog demodulation, and real-time spectrum analysis options |
| Model | N9032B |
|---|
Keysight (Agilent) N9032B 2Hz to 26.5GHz PXA Signal Analyzer Description: Frequency Range: 2 Hz to 26.5 GHz Maximum Analysis Bandwidth: 2 GHz DANL @1 GHz: -174 dBm Built to address high-bandwidth applications Drop-in replacement for rack mounted spectrum analyzers Keysight (Agilent) N9032B 2Hz to 26.5GHz PXA Signal Analyzer
