Keysight (Agilent)

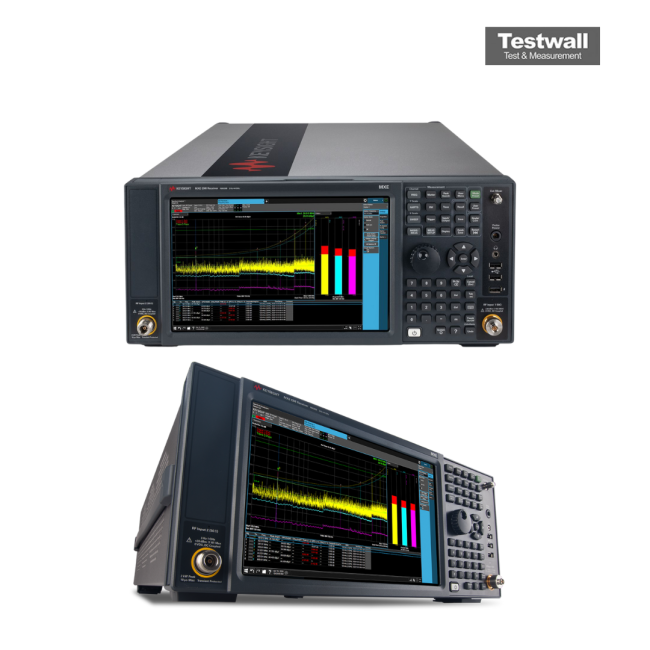

Keysight (Agilent) N9038B
3Hz To 44GHz Mxe EMI Test Receiver
3 Hz to 26.5 GHz Frequency Range
-174 dBm/Hz (with preamplifier enabled) Displayed Average Noise Level (DANL)
-106 dBc/Hz at 10 kHz offset (1 GHz carrier) Phase Noise
±0.19 dB total amplitude accuracy Amplitude Accuracy
Up to 107 dB third-order dynamic range Dynamic Range
| Attribute | Value |
|---|---|
| Frequency Range | 3 Hz to 26.5 GHz |
| Displayed Average Noise Level (DANL) | -174 dBm/Hz (with preamplifier enabled) |
| Phase Noise | -106 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.19 dB total amplitude accuracy |
| Dynamic Range | Up to 107 dB third-order dynamic range |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| EMI Measurement Capability | Built-in CISPR and MIL-STD compliant EMI filters and detectors |
| Connectivity and Interface | LAN (LXI), USB, and GPIB interfaces supported |
| Model | N9038B |
|---|
Keysight (Agilent) N9038B 3Hz To 44GHz Mxe EMI Test Receiver Description: Frequency Range: 3 Hz to 44 GHz Maximum Analysis Bandwidth: 160 MHz Maximum Real-Time BW: 160 MHz DANL @1 GHz: -174 dBm Perform EMC tests with a standard compliant receiver Enhanced diagnostics: Spectrum and Real Ttime analysis, strip chart, markers, span zoom, zoom span & spectrogram Keysight (Agilent) N9038B 3Hz To 44GHz Mxe EMI Test Receiver
