Keysight (Agilent)

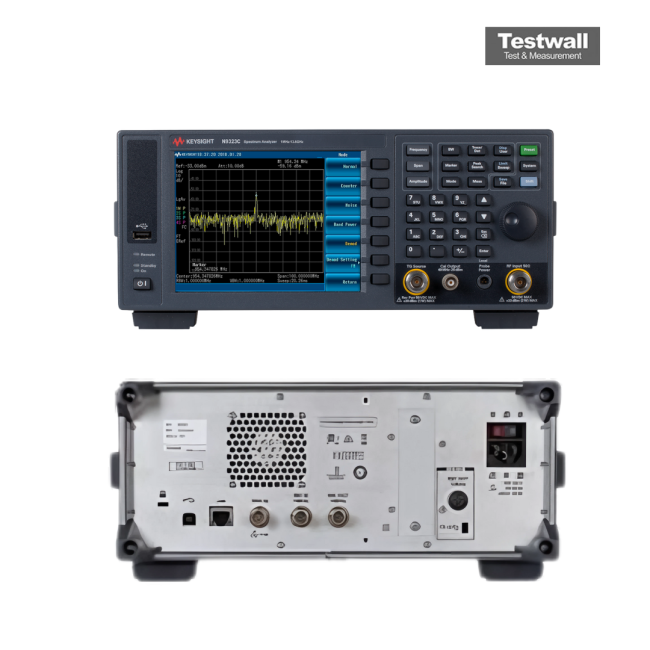

Keysight (Agilent) N9323C
1MHz - 13.6GHz Spectrum Analyzer
100 kHz to 13 GHz Frequency Range
-161 dBm/Hz (with preamplifier) Displayed Average Noise Level (DANL)
-98 dBc/Hz at 10 kHz offset (1 GHz carrier) Phase Noise
1 Hz to 3 MHz Resolution Bandwidth (RBW)
±0.5 dB Amplitude Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 13 GHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (with preamplifier) |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Amplitude Accuracy | ±0.5 dB |
| Dynamic Range | Up to 100 dB |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Display | 10.4-inch color LCD touchscreen |
| Connectivity/Interfaces | USB, LAN (LXI), VGA |
Keysight (Agilent) N9323C Options:
- N9323C - PFR - Precision Frequency Reference
- N9323C - TG7 - Tracking Generator, 5 MHz to 7 GHz
- N9323C - AMA - AM/FM Modulation Analysis
- N9323C - DMA - ASK/FSK Modulation Analysis
- N9323C - TMG - Time-Gated Spectrum Analysis
- N9323C - SCN - Channel Scanner
- N9323C - MNT - Spectrum Monitor
- N9323C - SEC - Security Features
- N9323C - TPN - Task Planner
- N9323C - PWM - USB Average Power Sensor Support
- N9323C - PWP - USB Peak and Average Power Sensor Support
- N9323C - EMC - EMI Bandwidths (CISPR compliant: 200 Hz, 9 kHz, 120 kHz, 1 MHz) and Quasi-peak Detector
- N9323C - P13 - Preamplifier, 1 MHz to 13.6 GHz, 15 dB Gain
- N9323C - G01 - GPIB Interface
| Model | N9323C |
|---|
Keysight (Agilent) N9323C 1MHz - 13.6GHz Spectrum Analyzer Description: Keysight (Agilent) N9323C 1MHz - 13.6GHz Spectrum Analyzer
