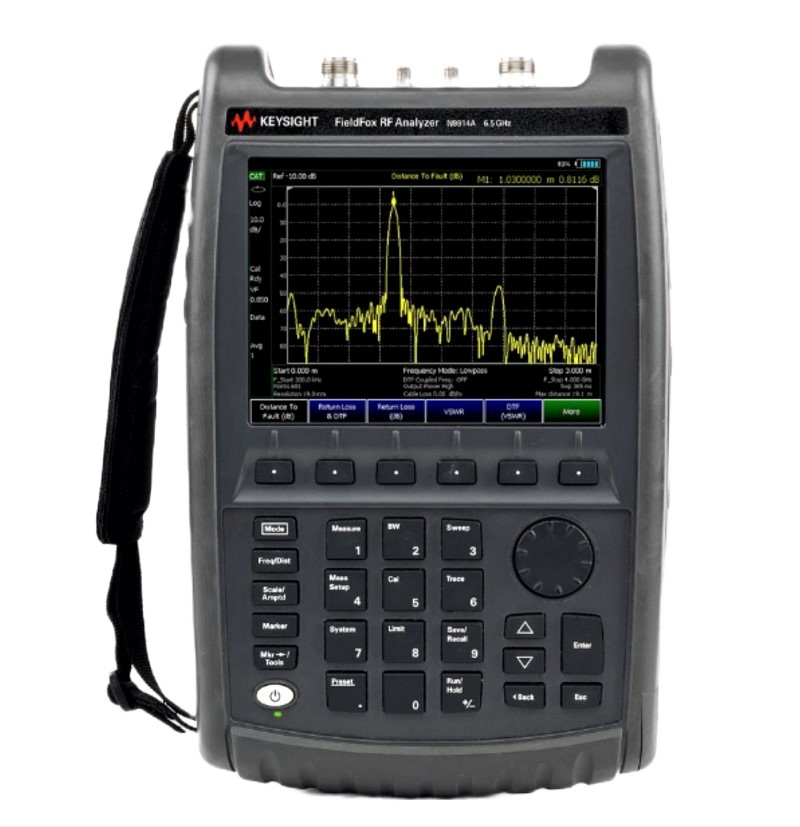

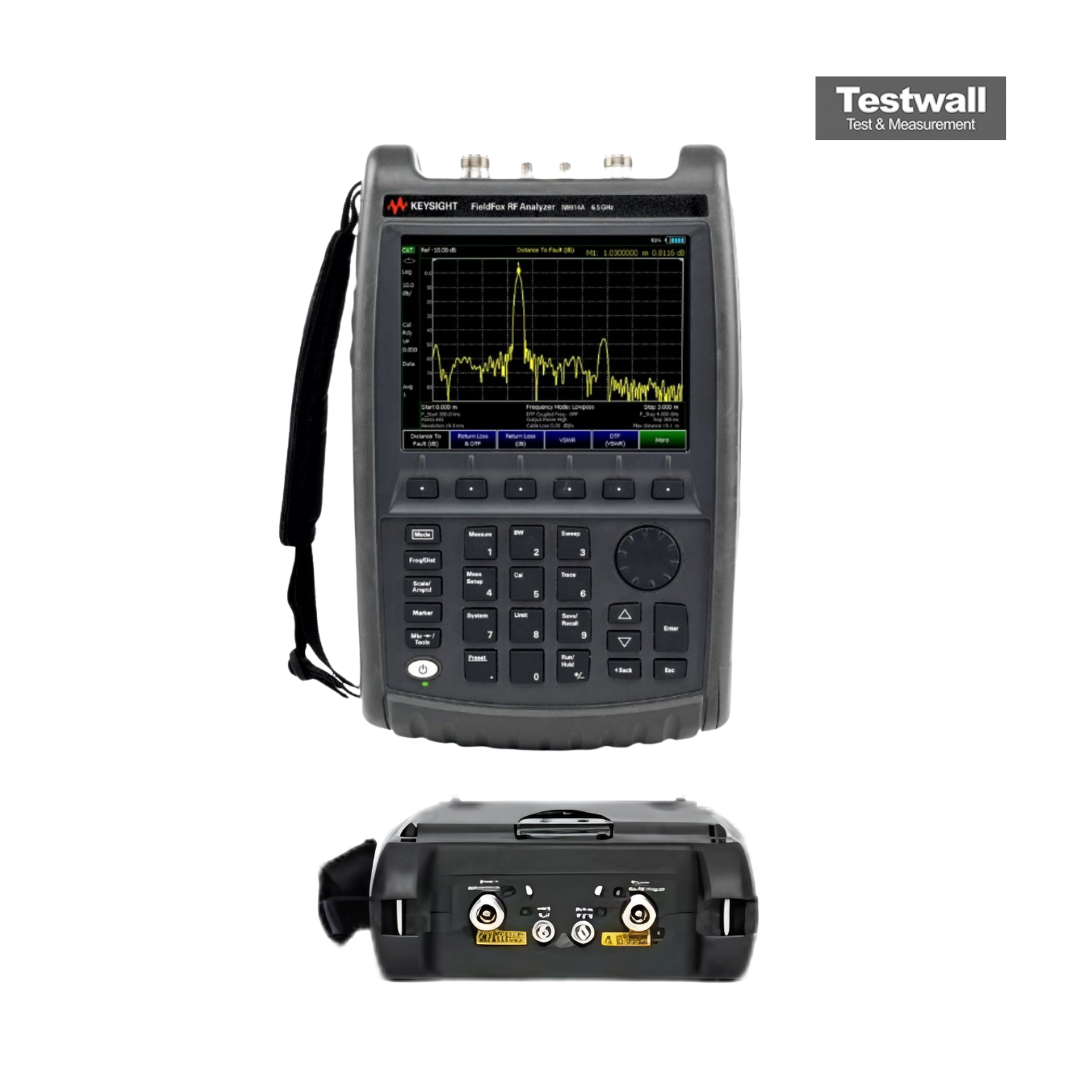

Keysight (Agilent) N9914A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 6.5 GHz |
| Dynamic Range | >100 dB |
| Output Power Range | -45 dBm to +3 dBm |
| Port Connector Type | Type-N (50 Ohm) |
| Number of Test Ports | 2 |
| Display Size | 8.4-inch color LCD touchscreen |
| Battery Life | Up to 3 hours (with internal battery) |
| Operating Temperature | -10°C to +55°C |
| Weight | 4.1 kg (9 lbs) |
| Measurement Parameters | S11, S21, S12, S22, DTF (Distance-to-Fault), Cable Loss, Return Loss, VSWR |
Keysight (Agilent) N9914A Options:
- N9914A - 010 - VNA Time Domain
- N9914A - 030 - Remote Control Capability
- N9914A - 209 - Extended Range Transmission Analysis (ERTA)
- N9914A - 210 - VNA Transmission/Reflection (T/R) S11, S21 magnitude and phase
- N9914A - 211 - 2-port measurement / Insertion loss (2-port)
- N9914A - 212 - Mixed-Mode S-Parameters
- N9914A - 215 - TDR Cable Measurements
- N9914A - 233 - Spectrum Analyzer (on Combination Analyzers)
- N9914A - 235 - Preamplifier
- N9914A - 236 - Interference Analyzer and Spectrogram
- N9914A - 238 - Spectrum Analyzer Time Gating
- N9914A - 302 - External USB Power Sensor Support
- N9914A - 305 - Distance-to-Fault (applicable to N992xA analyzers)
- N9914A - 307 - Built-In GPS Receiver
- N9914A - 308 - Vector Voltmeter (VVM)
- N9914A - 309 - DC Bias Variable-Voltage Source
- N9914A - 310 - Built-in Power Meter
- N9914A - 312 - Channel Scanner
- N9914A - 320 - Reflection Measurements (RL, VSWR) (applicable to SA only models)
- N9914A - 330 - Pulse Measurements
- N9914A - 350 - Real-Time Spectrum Analyzer (RTSA)
- N9914A - 351 - I/Q Analyzer (IQA)
- N9914A - 355 - AM/FM Analog Demodulation, Tune and Listen
- N9914A - 356 - Noise Figure (NF)
- N9914A - 370 - Over-the-Air (OTA) LTE FDD
- N9914A - 377 - Over-the-Air (OTA) 5GTP
- N9914A - 208 - USB Power Sensor Measurements versus Frequency
- N9910HU - 100 - Fast CPU Upgrade
- N9910HU - 200 - Fast CPU Upgrade
- N9910HU - 300 - Fast CPU Upgrade
| Model | N9914A |
|---|
Keysight (Agilent) N9914A RF & Microwave Combination Analyzer
FieldFox brings bench-level accuracy into the field by delivering precise handheld RF and microwave measurements that agree with benchtop analyzers. The FieldFox combo analyzer N9914A base function is a cable and antenna analyzer and can be configured to include a spectrum analyzer, real-time spectrum analyzer and full 2-port network analyzer. To save space in a field kit, built-in capabilities can be added to provide up to 10 instruments in 1. They're equipped to handle routine maintenance, in-depth troubleshooting and anything in between. Better yet, FieldFox delivers precise microwave and millimeter-wave measurements - wherever you need to go.
To enhance spectrum analysis, the Keysight N9914A FieldFox includes the same PowerSuite measurements used in Keysight signal analyzers, enabling fast, accurate, one- button characterization of channelized communication systems. The InstAlign capability lets you instantly make accurate power measurements in the field, even when temperature fluctuates. With FieldFox, you can measure both the 1-port cable loss and 2-port insertion loss. The N9913A FieldFox comes with a built-in calibration capability that allows you to calibrate the network analyzer without carrying a cal kit into the field. With any other test instrument, when you add additional devices to the test port, such as jumper cables or adapters, you need to recalibrate using a cal kit.
Specifications for the Keysight (Agilent) N9914A RF & Microwave Combination Analyzer Include:
| Maximum Frequency | 6.5 GHz |
| CAT/VNA Start Frequency | 30 kHz |
| SA Start Frequency | 5 kHz |
| Dynamic Range | 95 dB |
