Keysight (Agilent)

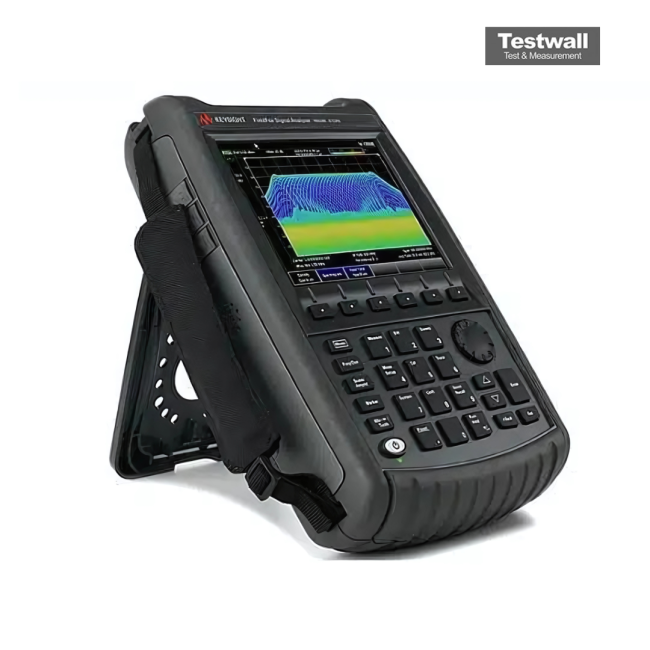

Keysight (Agilent) N9934B
6.5GHz Fieldfox Handheld Spectrum Analyzer
100 kHz to 6.5 GHz Frequency Range
+20 dBm to -163 dBm (DANL) Dynamic Range
8.4-inch color LCD touchscreen Display
-104 dBc/Hz at 10 kHz offset (1 GHz carrier) Phase Noise
±0.5 dB Amplitude Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 6.5 GHz |
| Dynamic Range | +20 dBm to -163 dBm (DANL) |
| Display | 8.4-inch color LCD touchscreen |
| Phase Noise | -104 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.5 dB |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Battery Life | Up to 4 hours with standard battery pack |
| Weight | Approximately 8.6 lbs (3.9 kg) |
| Connectivity | USB, LAN, and optional GPS |
| Operating Temperature | -10°C to +55°C |
| Model | N9934B |
|---|
Keysight (Agilent) N9934B 6.5GHz Fieldfox Handheld Spectrum Analyzer Description: Frequency Range: 9 kHz to 6.5 GHz Output Power: Up to 9 dBm Base model includes Signal Analyzer as standard Options to add Reflection measurements, Real-time spectrum analyzer, I/Q analysis etc. Lightweight, portable & battery powered Keysight (Agilent) N9934B 6.5GHz Fieldfox Handheld Spectrum Analyzer
