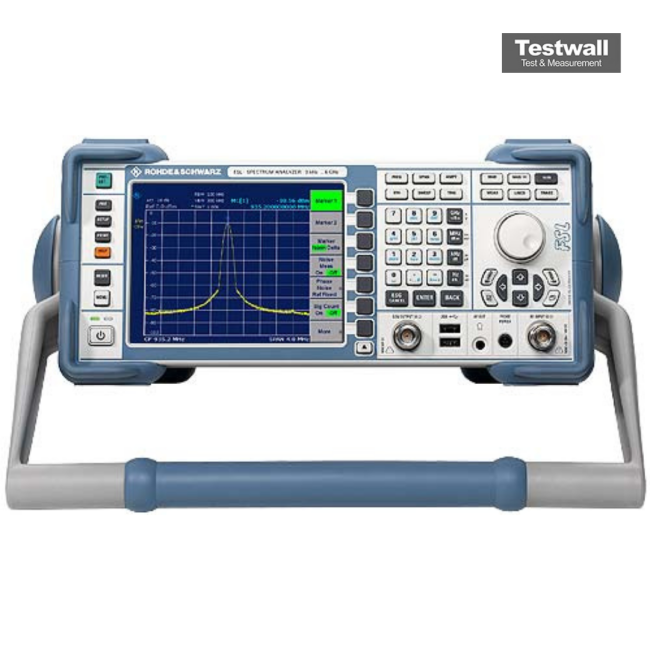

Rohde & Schwarz FSL3 (Model .13)
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3 GHz |
| Resolution Bandwidth | 10 Hz to 3 MHz |
| Display Average Noise Level (DANL) | -135 dBm (typical, at 1 GHz, 10 Hz RBW) |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (typical, at 1 GHz carrier) |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) |
| Frequency Reference | Internal TCXO, 10 MHz reference input/output |
| Dynamic Range | Up to 100 dB |
| Display | 6.5-inch color LCD (800 x 600 pixels) |
| Power Supply | 100 to 240 V AC, 50/60 Hz |
Rohde & Schwarz FSL3 (Model .13) Options:
- FSL3 - B4 - OCXO Reference Frequency, aging 1×10⁻⁷/year
- FSL3 - B5 - Additional Interfaces (video out, IF out, noise source control, AUX port, NRP power sensor)
- FSL3 - B6 - TV Trigger
- FSL3 - B7 - Narrow Resolution Filters
- FSL3 - B8 - Gated Sweep
- FSL3 - B10 - GPIB Interface
- FSL3 - B22 - RF Preamplifier
- FSL3 - B30 - DC Power Supply, 12 V to 28 V
- FSL3 - B31 - NiMH Battery Pack (requires FSL-B30)
- FSL3 - K7 - AM/FM/φM Measurement Demodulator
- FSL3 - K9 - Power Sensor Support (requires FSL-B5 or NRP-Z3/4 and NRP Power Sensor)
- FSL3 - K91 - Transmitter measurements for WLAN 802.11a, b, g, j
| Model | FSL3 |
|---|
The Rohde & Schwarz FSL3 Model .13 Spectrum Analyzer excels with versatile features like a built-in tracking generator (1 MHz to 6 GHz), multiple detector types (max, min, RMS, etc.), and a 1 Hz resolution frequency counter. It supports CP/ACP, TOI, and C/N measurements, with options for WLAN, Bluetooth, and EMI testing.
This compact analyzer offers channel filters with shape factor <2, FFT filters from 300 Hz to 30 kHz, and EMI filters up to 120 kHz, all editable with PASS/FAIL indicators and automatic test routines for fast diagnostics.
Testwall can supply the used Rohde & Schwarz FSL3 Model .13, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSL3 Model .13
