Keysight (Agilent)

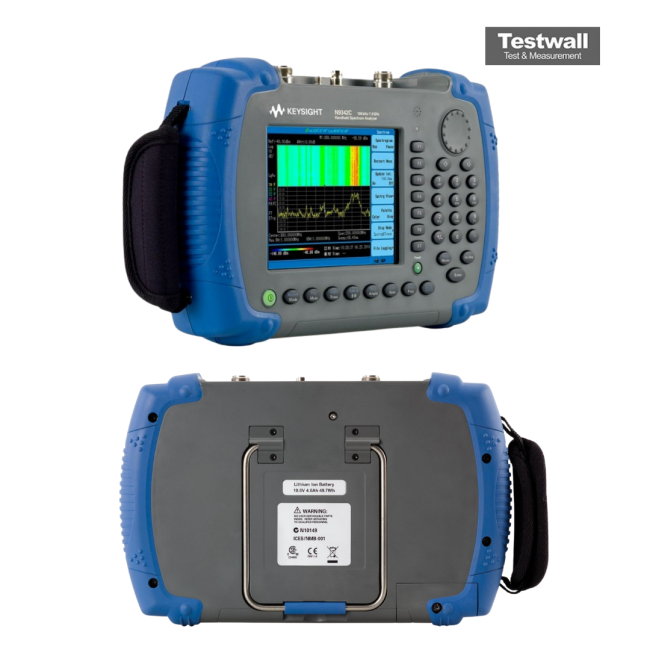

Keysight (Agilent) N9342C
7 GHz Handheld Spectrum Analyzer, Type N (f)
100 kHz to 7 GHz Frequency Range
6.5-inch color TFT LCD, 640 x 480 resolution Display
Up to 110 dB Dynamic Range
-161 dBm/Hz (with preamplifier enabled) Displayed Average Noise Level (DANL)
-98 dBc/Hz at 1 GHz carrier, 10 kHz offset Phase Noise
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 7 GHz |
| Display | 6.5-inch color TFT LCD, 640 x 480 resolution |
| Dynamic Range | Up to 110 dB |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (with preamplifier enabled) |
| Phase Noise | -98 dBc/Hz at 1 GHz carrier, 10 kHz offset |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 W) |
| Battery Life | Approximately 3 hours with internal rechargeable battery |
| Connectivity & Interfaces | USB, LAN (LXI), GPS (optional), Mini USB |
Keysight Technologies N9342C Options:
- N9342C - TG7 - Tracking Generator (provides an RF source for scalar network analysis, exclusive for N9342C)
- N9342C - SIM - Spectrum Monitor (provides capability to analyze the stability of a signal over time)
- N9342C - PA7 - High-sensitivity Measurement with pre-amplifier (for N9342C)
- N9342C - P13 - High-sensitivity Measurement with pre-amplifier (for N9343C)
- N9342C - P20 - High-sensitivity Measurement with pre-amplifier (for N9344C)
- N9342C - PWM - High Accuracy Power Measurement (supports Agilent U2000 series power sensors)
- N9342C - CA7 - Cable & Antenna Test (requires option TG7; provides VSWR, return loss, cable loss and distance-to-fault measurement)
- N9342C - CAU - Cable & Antenna Test (upgraded version)
- N9342C - AMA - AM/FM Modulation Analysis
- N9342C - DMA - ASK/FSK Modulation Analysis
- N9342C - TPN - Task Planner (integrates different measurements for test automation)
- N9342C - TMG - Time-gated Spectrum Analysis (measures signals separated in time and excludes interfering signals)
- N9342C - SCN - Channel Scanner (channel scan function for spectrum monitoring, coverage test, and band clearance)
- N9342C - GPS - Built-in GPS (offers GPS location for field testing)
- N9342C - GPA - GPS Antenna (external GPS antenna accessory)
- N9342C - SEC - User Data Sanitation (allows user to erase all customized files and data for security)
- N9342C - BCG - External Battery Charger
- N9342C - 1DC - Automotive DC Adapter (for battery recharging via vehicle power outlet)
- N9342C - 900 - AC Power Cord, BS 1363/A, United Kingdom, Hong Kong, Singapore, Malaysia
- N9342C - 901 - AC Power Cord, AS 3112:2000, Australia, New Zealand
- N9342C - 902 - AC Power Cord, IEC 83 C4, Continental Europe, Korea, Indonesia, Italy, Russia
- N9342C - 903 - AC Power Cord, CNS 10917-2/NEMA 5-15P, United States, Canada, Taiwan, Mexico
- N9342C - 906 - AC Power Cord, SEV 1011, Switzerland
- N9342C - 917 - AC Power Cord, SABS 164-1, South Africa, India
- N9342C - 918 - AC Power Cord, JIS C8303, Japan
- N9342C - 919 - AC Power Cord, SI 32, Israel
- N9342C - 922 - AC Power Cord, GB 1002, China
| Model | N9342C |
|---|
The Keysight (Agilent) N9342C Handheld Spectrum Analyzer covers 9 kHz to 7 GHz with –152 dBm DANL and ±1.5 dB amplitude accuracy. Rugged, fanless 6.5″ TFT touchscreen, built‑in GPS and tracking generator support CAT, DTF, return‑loss, and modulation analyses in under 0.4 s sweep.
Perfect for RF installation, site surveys, interference analysis, and lab‑grade measurements via USB/LAN remote control and Task Planner automation.
Testwall can supply the used Keysight (Agilent) N9342C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9342C.
