Keysight (Agilent)
Keysight (Agilent) P9336A
Streamline USB I/Q Arbitrary Waveform Generator
up to 1.28 GSa/s Sample Rate
16 bit Vertical Resolution
up to 4 GB Arbitrary Memory
SFDR > 67 dBc Harmonic Distortion
50 Ω (nom.) Output Impedance
| Attribute | Value |
|---|---|
| Sample Rate | up to 1.28 GSa/s |
| Vertical Resolution | 16 bit |
| Arbitrary Memory | up to 4 GB |
| Harmonic Distortion | SFDR > 67 dBc |
| Output Impedance | 50 Ω (nom.) |
| Channels | 3 channels (2 I/Q, 1 amplified) |
| Frequency Range | 540 MHz bandwidth per channel (1080 MHz I/Q) |
| Amplitude | up to 1 Vpp (2 Vpp diff.), channel 1 and 2; up to 1.7 Vpp (3.4 Vpp diff.), channel 3 |
| Output Connector | SMB |
| Interfaces | USB 3.0 |

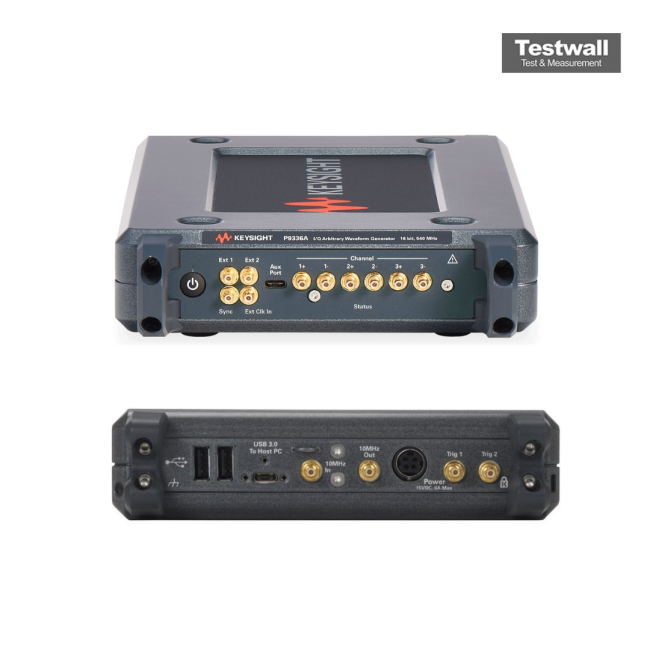

The Keysight (Agilent) P9336A Streamline USB I/Q Arbitrary Waveform Generator features a 540 MHz bandwidth per channel and 1080 MHz I/Q modulation bandwidth, offering 16-bit amplitude resolution.
Compact and portable, it provides three differential or single-ended signal channels with SMB connectors and is controlled via USB by an external computer.
Testwall can supply the used Keysight (Agilent) P9336A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) P9336A.
