Rohde & Schwarz SMA100B-B112
| Attribute | Value |
|---|---|
| Frequency Range | 8 kHz to 12.75 GHz (Opt. B112) |
| Frequency Resolution | 0.001 Hz |
| Output Power | -145 to +19 dBm (Opt. B103/B106; up to +30 dBm with Opt. K31/B32); +17 dBm at 20 GHz (Opt. B120); +13 dBm at 40 GHz (Opt. B140); +5 dBm at 67 GHz (Opt. B167) |
| SSB Phase Noise | < -135 dBc/Hz (-140 dBc/Hz typ.) at 1 GHz, 20 kHz offset; < -115 dBc/Hz at 10 GHz |
| Modulation | AM, FM, ΦM (Opt. K720), pulse (Opt. K22) |
| Level Accuracy | < 0.5 dB (to 3 GHz), < 0.9 dB (to 20 GHz), < 1.0 dB (to 40 GHz), < 2.0 dB (to 67 GHz) |
| Harmonics | < -60 dBc (Opt. B103/B106), < -55 dBc (Opt. B112 to B167), > 10 MHz |
| Non-Harmonics | < -74 dBc (6 to 12 GHz), < -68 dBc (12 to 24 GHz), offset > 10 kHz |
| Switching Speed | < 2.0 ms (to 20 GHz), < 2.5 ms (to 67 GHz) |
| Sweep Modes | step sweep, ramp sweep (Opt. B28), power sweep, list mode |
| Timebase Aging | 10 MHz, ≤ 1 × 10⁻⁷ per year (≤ 3 × 10⁻⁸ with Opt. B1H/B709/B710/B711) |

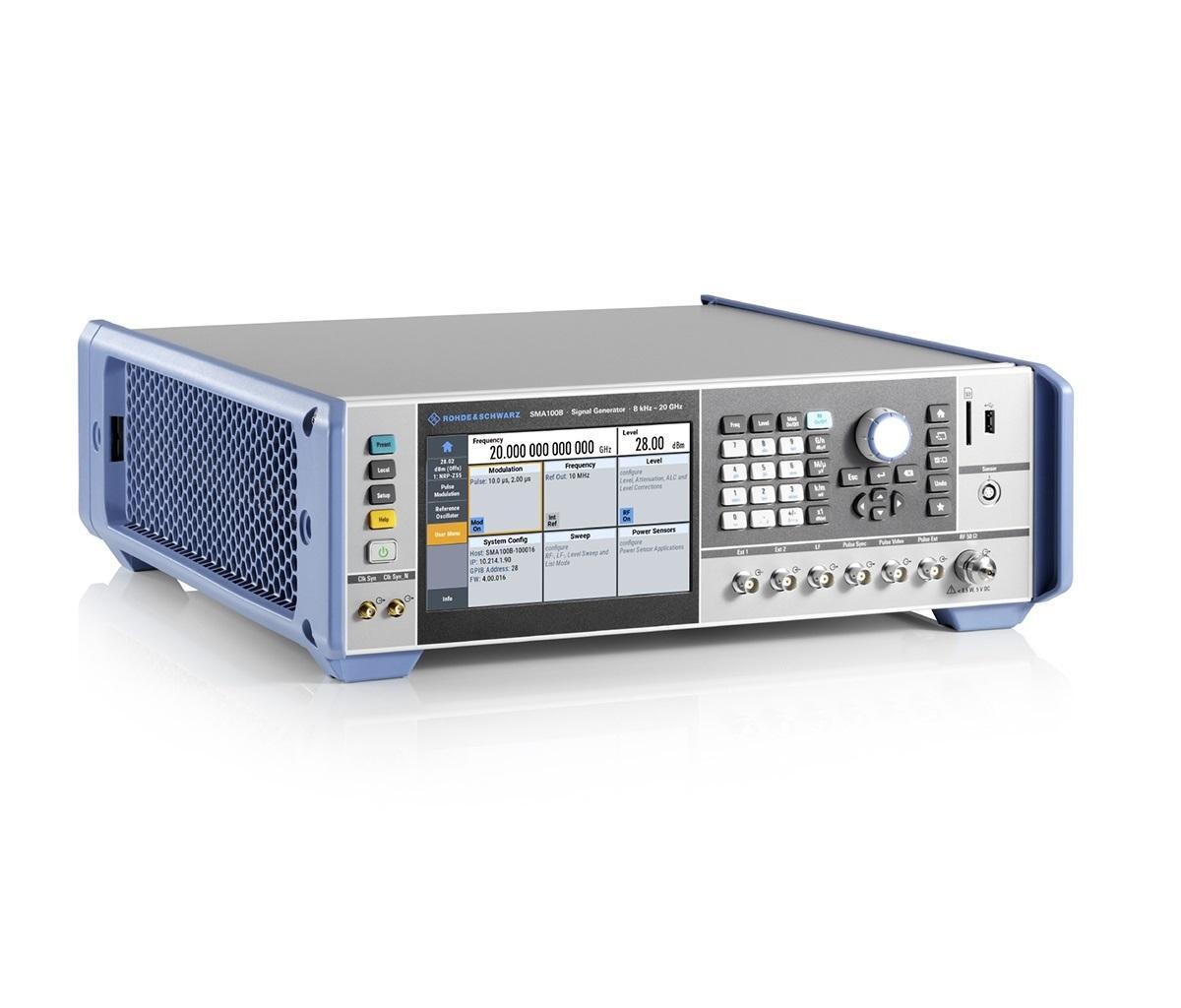

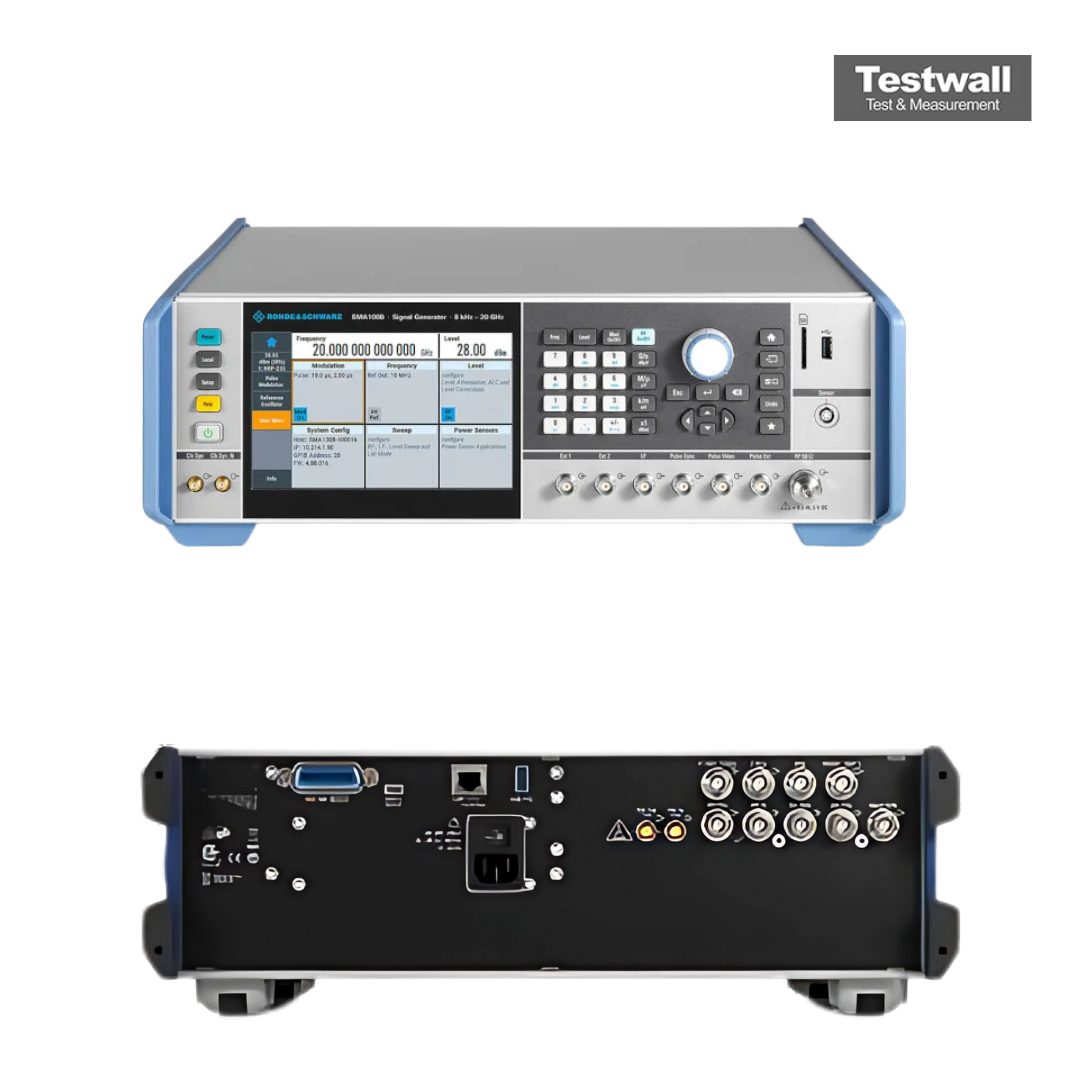

The Rohde & Schwarz SMA100B-B112 is a high-performance RF and microwave signal generator with a frequency range from 8 kHz to 67 GHz (overrange up to 72 GHz), offering maximum output power exceeding 30 dBm, lowest SSB phase noise of –132 dBc, and virtually no wideband noise at –162 dBc.
Engineered for aerospace, defense, wireless communications, and RF semiconductor industries, this unit guarantees top-tier performance with ultra-pure signals and exceptionally low harmonics.
Testwall can supply the used Rohde & Schwarz SMA100B-B112, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMA100B-B112.
