Keysight (Agilent) PV8922A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 2.7 GHz |
| Output Power Range | -110 dBm to +13 dBm |
| Modulation Types | AM, FM, PM, Pulse, I/Q |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -116 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| RF Output Connector | Type-N Female, 50 Ohm |
| Harmonic Distortion | < -30 dBc |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
| Interface/Connectivity | GPIB, USB, LAN (LXI) |
Keysight (Agilent) PV8922A Options:
- DG9000A - DG9104A - License to control up to 4 PV simulators in DG9000A software
- DG9000A - DG9108A - License to control up to 8 PV simulators in DG9000A software
- DG9000A - DG9112A - License to control up to 12 PV simulators in DG9000A software
| Model | PV8922A |
|---|

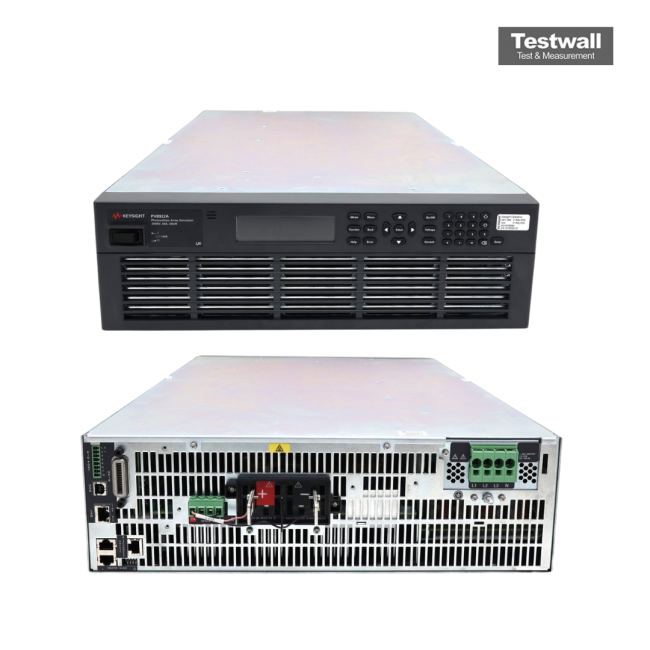

Keysight (Agilent) PV8922A Photovoltaic Array Simulator
Whether your inverter has one or twelve inputs / MPPTs, Keysight's PV8922A Photovoltaic/Solar Inverter Test Solution can help you go beyond the test standards to maximize performance and bankability. With the PV8922A and DG9000A software you can simultaneously control and test from one to twelve PV inverter inputs / MPPTS, enabling you to go beyond the test standards, optimizing your inverters to beat the competition. The PV8922A PV array simulators' autoranging output characteristic makes it much more flexible than rectangular, or traditional, output characteristic power supplies because they expand the power curve, giving you more voltage and cur combinations in one power supply.
The Keysight PV8922A PV simulators are autoranging, programmable DC power sources that simulate the output characteristics of a photovoltaic array under diffe environmental conditions (temperature, irradiance, age, cell technology, etc.) enabling you to quickly and comprehensively test inverter MPPT algorithms and inverter efficiency. The PV8922A has two solar array simulation (SAS) operating modes: curve mode where the PV array simulator quickly creates the curve mathematically and table mode where you can enter the precise I-V curve with up to 1024 points and table mode, the SAS characteristic curve is created from up to 1024 user-specified voltage/cur points to match specific I-V curves.
Specifications for the Keysight (Agilent) PV8922A Photovoltaic Array Simulator Include:
| Voltage | 2000V |
| Current | 30A |
| Total Power | 20kW |
| AC Input | 3 phase; 380 €“ 480 VAC |
