Keysight (Agilent) PV8932A
| Attribute | Value |
|---|---|
| Form Factor | PXI Module |
| Number of Channels | 32 Channels |
| Switch Type | Multiplexer |
| Signal Type | Single-Ended |
| Maximum Voltage | 300 V |
| Maximum Current | 1 A |
| Frequency Range | DC to 10 MHz |
| PXI Slots Required | 1 Slot |
| Operating Temperature | 0°C to 55°C |
| Connector Type | Mass Interconnect (D-Sub) |
Keysight (Agilent) PV8932A Options:
- DG8901A - DG8901A - License for SAS Control Pro, enables automated static and dynamic EN50530 test
- DG9000A - DG9104A - License to control up to 4 PV simulators in DG9000A software
- DG9000A - DG9108A - License to control up to 8 PV simulators in DG9000A software
- DG9000A - DG9112A - License to control up to 12 PV simulators in DG9000A software
| Model | PV8932A |
|---|

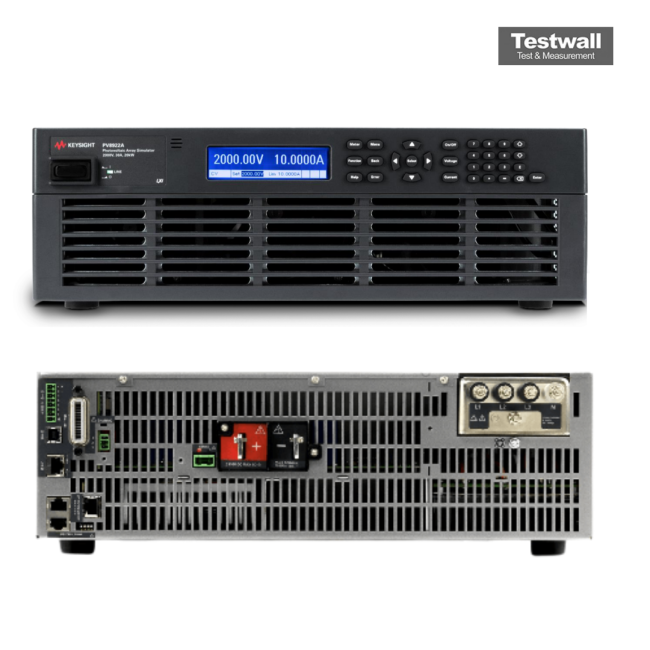

KEYSIGHT PV8932A Photovoltaic Array Simulator
The Keysight PV8932A Photovoltaic Array Simulator enables you to develop, verify and optimize the performance of your inverter maximum power point tracking algorithms. Developing and verifying the performance of inverter maximum power point tracking (MPPT) algorithms is challenging. MPPT algorithms are complex, and under-the-sun testing with a comprehensive set of temperature and irradiance conditions is difficult, expensive and time consuming. As inverters increase in power, the size of the test array would become unmanageable. As they increase in number of inputs on a single inverter, the complexity of test changes exponentially. The only practical test method is to use a laboratory test solution that can simulate from one to many real-world solar array strings.
The Keysight PV8932A Photovoltaic Array Simulators can simulate the output characteristics of a real-world photovoltaic array. The PV8932A PV array simulator is an autoranging, programmable DC power source that can quickly simulate I-V curve characteristics under diffe environmental conditions (temperature, irradiance, age, cell technology and more), enabling you to quickly and comprehensively test your solar inverters. The Keysight Technologies PV8900 Series PV array simulator provides up to 30 kW autoranging, single-output programmable DC power. The autoranging output characteristic enable a wide range of voltage and cur combinations at full power.
Specifications for the KEYSIGHT PV8932A Photovoltaic Array Simulator Include:
| Max Voltage | 2000 V |
| Max Current | 30 A |
| Total Power | 30 kW |
|
Transient Response |
300 µs |
